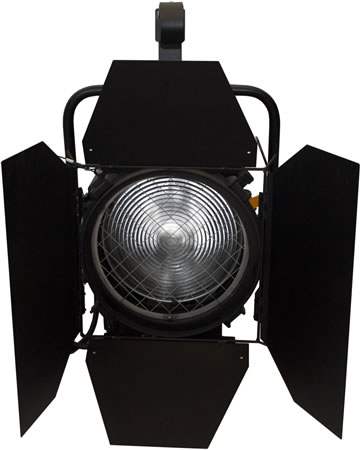

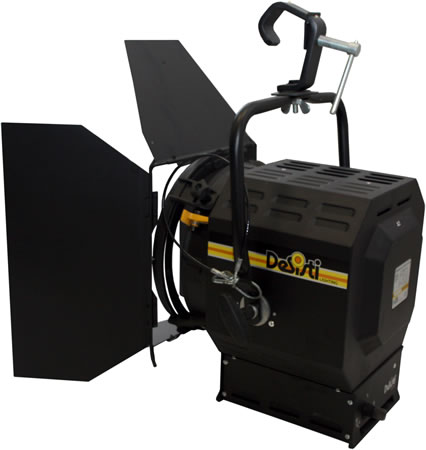

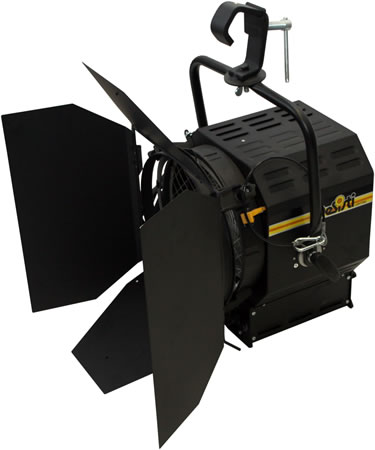

DESISTI Leonardo 2kW

  • Compact, highly efficient Fresnel lens spotlight using tungsten-quartz-halogen filament lamps having G38 socket, L.C.L. of 127 mm. and max. 2,5 kW power (lamp 2,5 kW only available at 230V, the maximum power for 120V is 2 kW).
  • The following special versions are available on special request:
  • Version using  tungsten-quartz-halogen filament lamps having GY 16 socket, L.C.L. of  70 mm. and max. 2 kW power
  • Version using tungsten – quartz halogen twin filament lamp having GX38q Base and L.C.L. of  143 mm. Max  3750 W power (1250+2500 ) – 230 or 240V only.
  • 250 mm. diameter high quality, shock resistant Borosilicate glass Fresnel lens on spring supports.
  • Rugged and Lightweight Carbon Steel housing with low glare black epoxy powder coating, with internal double walls and reinforces.
  • High efficiency convection cooling.
  • Heavy-duty G-38 bi-post socket for tungsten halogen lamps, with lever activation and special contacts for homogeneous
  • current distribution over lamp’s pins.
  • Special bimetallic clad aluminum reflector for high degree of reflectivity and thermal resistance for long life.
  • Stainless steel cable driven focus mechanism which guides Teflon bushings supported lamp carriage along 2 stainless steel rails. This ensures smooth operation, and restricts bouncing or chattering of the lamp carriage during focusing, in any tilting position of the fixture, avoiding lamp failures during operation. The Teflon bushings also provide a wiping action, which cleans the stainless steel guide rails during focus. The focusing mechanism can be activated from both front and rear of the fixture and the whole spot to flood action is accomplished with 1 and half turn of the focusing knob.
  • The unit is equipped with a hinged lens door with wire-guard for easy access to the lamp, it includes accessory holding brackets, which can be positioned in two different arrangements (vertical-horizontal or diagonal). One of the 4 brackets has a locking knob and is spring loaded, it can be locked to either safely hold barndoor, color frame and scrims or to be rotated 90° and locked in an open position for fast accessories changes. A double safety accessory bracket with spring loaded catch isavailable on request to be assembled opposite to the locking knob.
  • The accessories are secure regardless of the orientation of the fixture. Accessories have been designed for one hand installation.
  • Available with either positive lock manual yokes for comfort and ease of handling, or pole operated yokes which can be used via the lighting pole for Panning and Tilting the lights as well as manually, since the mechanical activators are equipped with clutches. It is possible the conversion between the two types.

Galerie photos

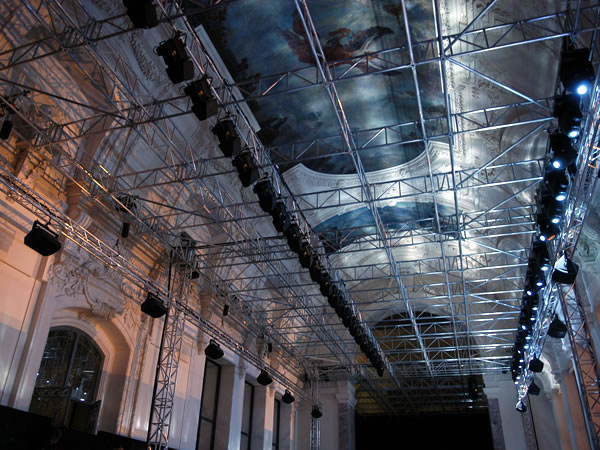

1 adb fresnel2kw 001

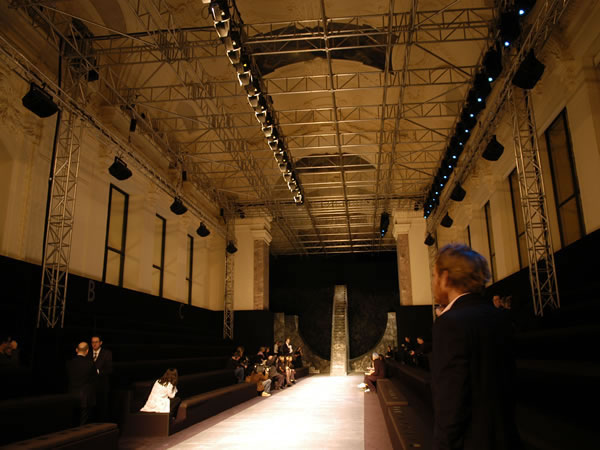

2 adb fresnel2kw 002

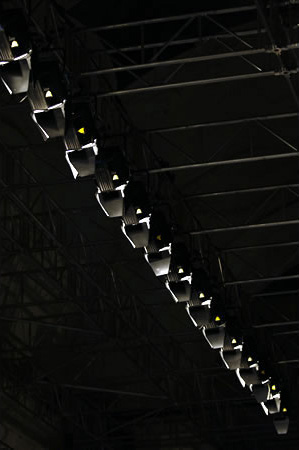

3 adb fresnel2kw 003

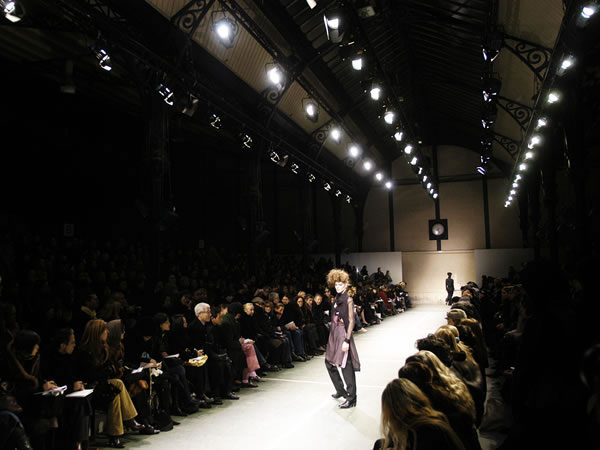

4 adb fresnel2kw 004

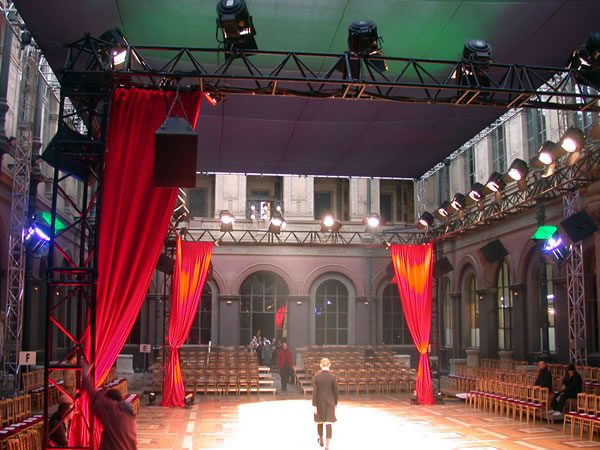

5 adb fresnel2kw 005

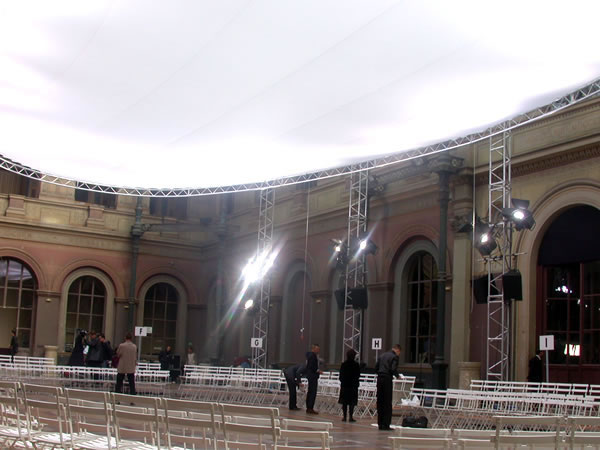

6 adb fresnel2kw 006

Propriétés techniques

  • Dimensions en flight-case (X2): xx cm

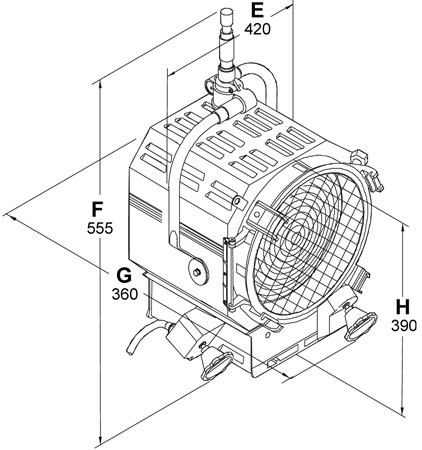

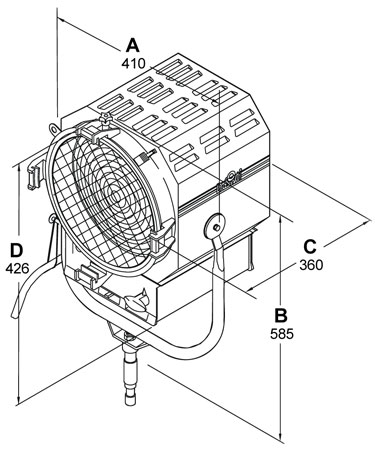

  • Dimensions unitaires: 44,3 x 36 x 42 cm
  • Poids en flight-case (X4): xx kg
  • Poids unitaire (avec volet+PFcrochet): 16 lg
