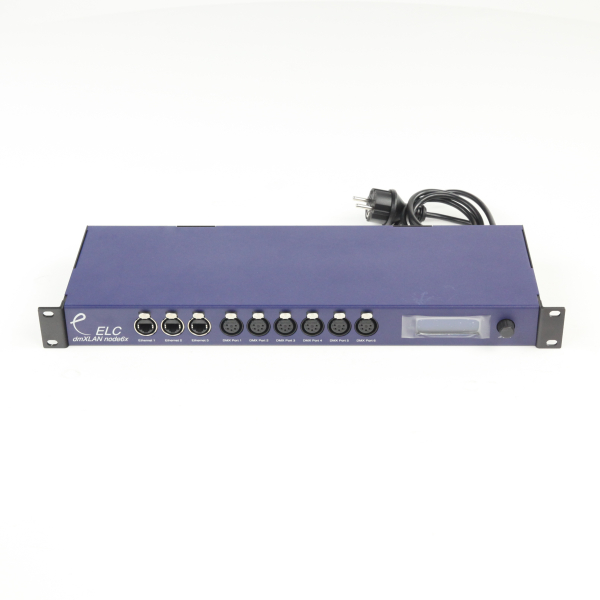

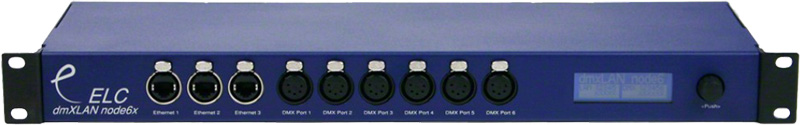

ELC DMXLAN Node 6x
dmXLAN node6x is our top all in one DMX / Ethernet solution. It features 6x DMX inputs/outputs ports , fully compatible with our free dmXLAN software with advanced DMX channel merging & patching. And a 5-port 10/100MBit Ethernet switch. It also works perfect as a standalone DMX toolbox.
Features:
- Remote programming and monitoring
- DMX input options like Normal and Backup
- DMX output options like:
- Normal
- Merging in HTP / LTP or custom
- Priority merging
- Merging with softpatch
- Remote takeover of fixture parameters
- Visualizer input supports softwares like WYSIWYG / ESP / Capture / and many others
Connections:
- 3x 10/100 mBit Ethernet connection on Neutrik Ethercon (Front)
- 2x 10/100 mBit Ethernet connection on RJ45 (Back)
- 6x BiDirectional DMX ports on Female XLR5-pin. Can be used for DMX output, DMX input or DMX output with RDM (Front)
