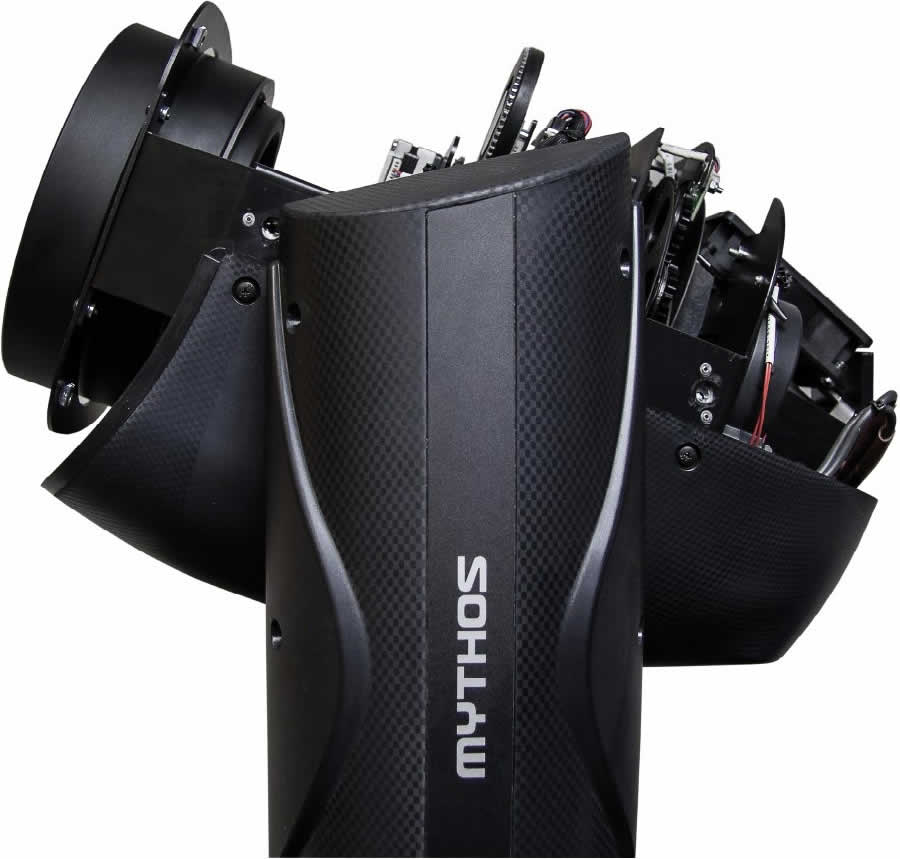

CLAY PAKY Mythos

Mythos is a highly advanced form of hybrid light: first of all, it is an excellent 470 watt-lamp spotlight, which produces an outstanding large light beam, featuring a zoom that ranges from 4° to 50° (1:12 ratio).

Light beam is sharp, with perfectly defined edges, from the first millimetres after the front lens right along its entire length. The zoom is optimized for focusing, which is separate from that of the fixed and rotating gobos. Its movements are smooth, fast and very quiet. Mythos also features a completely redesigned indexed visual effect disc, which may be superimposed on all the gobos, both in and out of focus.

But Mythos is also an extraordinary beam light, allowing you to switch to a minimum fixed beam angle of just 2.5°. A large, very dense, 160 mm-diameter light beam leaves the Mythos’s front lens and remains parallel for its entire length even at great distances.

Mythos is a very versatile tool, which is useful in any situation and therefore an excellent investment.

POWER SUPPLIES

115/230V 50/60 Hz
Automatic power supply switching

INPUT POWER

700VA at 230V 50Hz

LAMP SOURCE

470W discharge lamp
Type: MSD Platinum 20R
Color Temperature: 7,800 K
Life: 1,500hrs
Luminoux flux: 23,000 lm
Cap by faston TM 250 (6.35 mm)

OPTICS

160mm diam. front lens
Electronic focusing for a perfectly sharp light beam along its entire length
Zoom ranging from 4° to 31° for fixed gobos sharp focusing
Zoom range from 6.7° to 50° for rotating gobos sharp focusing
BEAM mode with 2.5° aperture and “pipe” effect

COLOR SYSTEM

CMY color system based on 3 gradually fading color wheels
14 color filters on three wheels
2 CTO filters (3,200K and 2,500K) + 1 CTB filter

EFFECTS SECTION

2 gobo wheels:
- wheel with 6 HQ dichroic, indexable and interchangeable rotating gobos (Ø 25.9mm).
- interchangeable and variable rotating wheel with 18+1 fixed metal gobos (including 6 beam reducers).
Selectable Gobo-Shake function
Advanced Visual Effect Disc (Animation disc)
2 indexable and interchangeable rotating prisms (8-facet and linear prism)
Frost unit to soften the beam edge
High precision 0-100% dimmer
Mechanical shutter and adjustable speed strobe effect

CONTROL AND PROGRAMMING

30/34 DMX 512 control channels
DMX protocol signal: USITT DMX 512
Art-Net / RDM
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Gobo Indexing Resolution: 16 bit
Focus Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 5 pole XLR input and output
Software upload through DMX input

BODY

Aluminium structure with die-cast plastic cover.
Two side handles for transportation.
Device locking PAN and TILT mechanisms for transportation and maintenance.

MOVING BODY

Angle:
- PAN = 540°
- TILT = 244°
Resolution:
- PAN = 2.11°
- PAN FINE = 0.008°
- TILT = 0.960°
- TILT FINE = 0.004°
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit.

ELECTRONICS

Long life self-charging buffer battery.
Pre-set macros.
Function reset from control unit
"ENERGY SAVING" function: with the stop or total dimmer effect on, or with all the CMY filters full (black), consumption cut by 50%.
ON/OFF lamp control from the lighting desk.
Function reset from the lighting desk.
"AUTOTEST" function from menù
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware Upgrade with no power
Firmware upload from another fixture

SAFETY DEVICES

Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating or failed operation of cooling system.
Forced ventilation with axial fans.

WORKING POSITION
