Chauvet Well Fit C



WELL Fit is a must for event lighting. A discrete, high powered LED up-lighter, this small battery powered wash light comes in a reflective chrome housing designed to blend into any décor. WELL Fit can be controlled wirelessly either by W-DMX or by an included IR remote; alternatively, it can be controlled manually from the OLED display on the fixture. All of these features combined make the WELL Fit a perfect solution for quick setup and distinguished accent lighting.Chrome exterior for blending into its surroundings.

FEATURES
  • A completely wireless IP65 rated battery powered up-light with four high powered quad colored RGBW LEDs that is controlled by W-DMX or IR remote.
  • Chrome exterior for blending into its surroundings.
  • Ships with 6 slot drop in charging case for easy storage and re-charging of the battery.
  • 8 hours of operation at full and a quick 5 hours charging time for frequent use.
  • Built in automated programs recallable by IR, WDMX or manually.
  • M12 threaded insert for easy clamp installation and a Kensington lock position for securing your investment.
SPECIFICATIONS
Optical
  • Light Source: 4 LEDs (quad- color RGBW) 10 W, (720 mA), 50,000 hours life expectancy).
  • Beam Angle: 11°
  • Field Angle: 18°
  • Illuminance (18°): 800 lux @ 5 m PWM Frequency: 1200 Hz
Dynamic Effects
  • Color Macros: 5 macros Dimmer: Electronic Shutter/Strobe: Electronic Strobe Rate: 0 to 24 Hz Standalone Color Mixing: Yes Color Temperature Presets: Yes Dim Modes: 4
  • Built-in Automated Programs: Yes
Construction / Physical

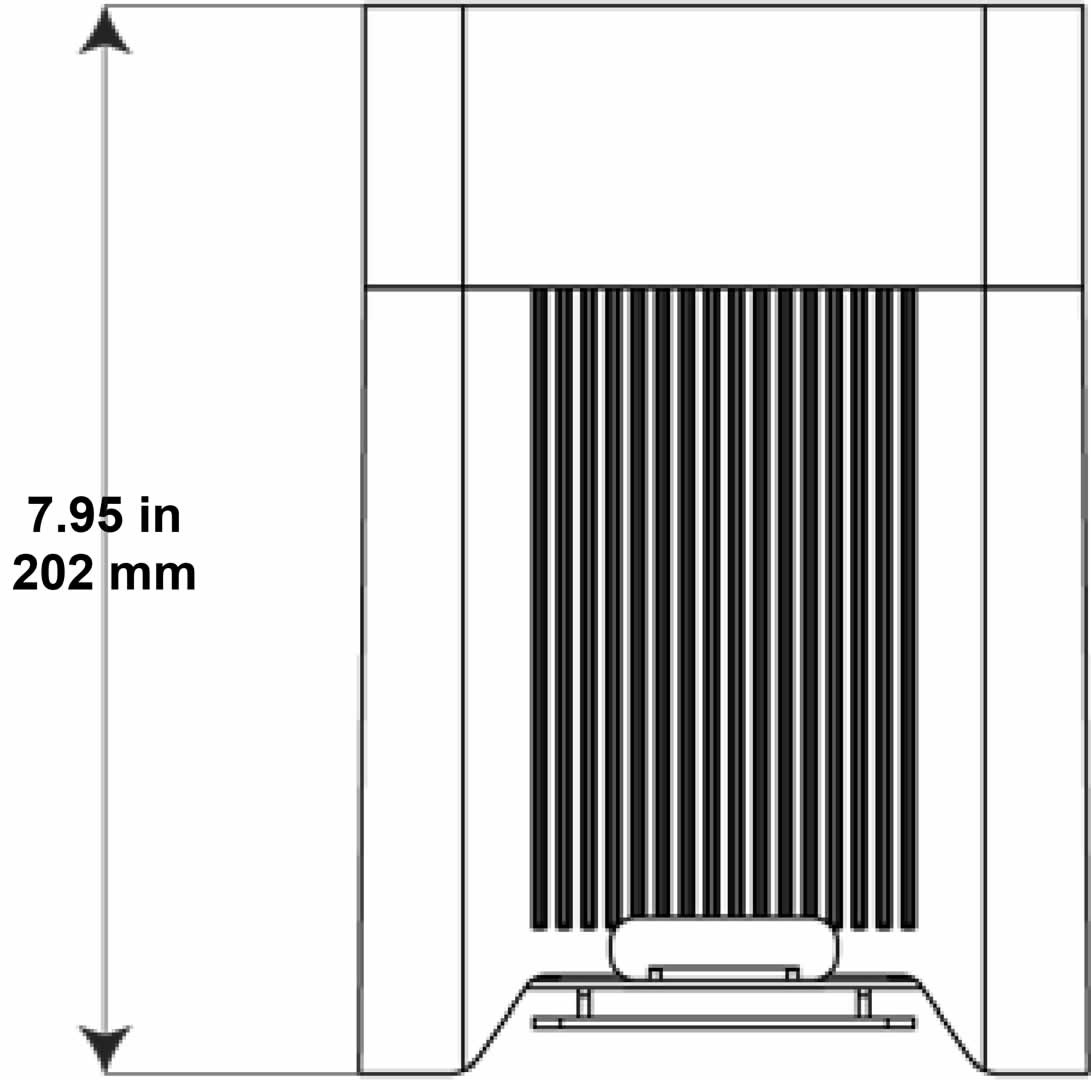

  • Dimensions: 5.4 x 5.7 x 8 in (138 x 145 x 202 mm) Dimensions (charging case): 20.4 x 18.5 x 21.2 in (519 x 470 x 540 mm)
  • Weight (single unit) 7.4 LB (3.4 kg)
  • Weight (charging case): 103.6 lb (47 kg)
  • Exterior Color: Chrome
  • Housing Material: Aluminum die-cast
Connections
  • Power Connection: Edison (Local) plug to Neutrik® powerCON
  • Power Input: Neutrik® powerCON®
  • Cable Length (power): 5 ft (1.5 m)
Control
  • Control Protocol: W-DMXTM, IRC
  • DMX Channels: 3, 4, 6 or 10
  • Modes/Personalities: 5 personalities (4Ch, 6Ch, 10Ch, HSV, HSI)
Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current (single unit charging): 48 W, 0.44 A @ 120 V, 60 Hz
  • Power and Current (charging case): 288 W, 2.44 A @ 120 V, 60 Hz
  • Power and Current (single unit charging): 48 W, 0.25 A @ 208 V, 60 Hz
  • Power and Current (charging case): 288 W, 1.5 A @ 208 V, 60 Hz
  • Power and Current (single unit charging): 48 W, 0.23 A @ 230 V, 50 Hz
  • Power and Current (charging case): 288 W, 1.38 A @ 230 V, 50 Hz

Battery

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 5 hours
  • Battery Life: (all on) 8 hours, (single LED) 20 hours
  • Battery Power: 14.8 V, 11 Ah
Certifications / Qualifications
  • CE
  • IP Rating: IP65, temporary outdoor/wet use

Galerie photos


Propriétés techniques


  • Consommation électrique: 48 W
  • Dimensions en flight-case (x6): 52 x 47 x 54 cm
  • Dimensions unitaires: 138 x 145 x 202 mm
  • Poids en flight-case (X6): 47 kg
  • Poids unitaire: 3,4 kg
