Absen M2.3 Dalle

PARAMETERS
  • Pixel Pitch : 2.31mm
  • Pixel Configuration : Black SMD 1010
  • Brightness : 800 nit
  • Color Contrast : 6500 : 1
  • Refresh Rate : ≥3840 Hz
  • Gray Scale : ≥3840 Hz
  • Pixel Matrix per Cabinet : 216 × 216 Pixel
  • Power Consumption (max/avg) : 650/216 W/sq.m
  • Viewing Angle (H/V) : 140°/100°
  • IP Rate : IP40/IP21
  • Cabinet Size (W × H × D) : 500 x 500 x 96 mm
  • Cabinet Weight : 8.3 kg
  • Cabinet material : Die casting magnesium
  • Input Voltage (AC) : 100 ~ 240 V
  • Operating Temperature : 100 ~ 240 V

REVOLUTIONARY LOCKING SYSTEM

Quick build times and perfect mechanical alignment, critical for 2mm rental products . Takes only 3 seconds Flat to curves is simple s ental nds to mount and lock. imple and easy : no tools.

CURVE SYSTEM

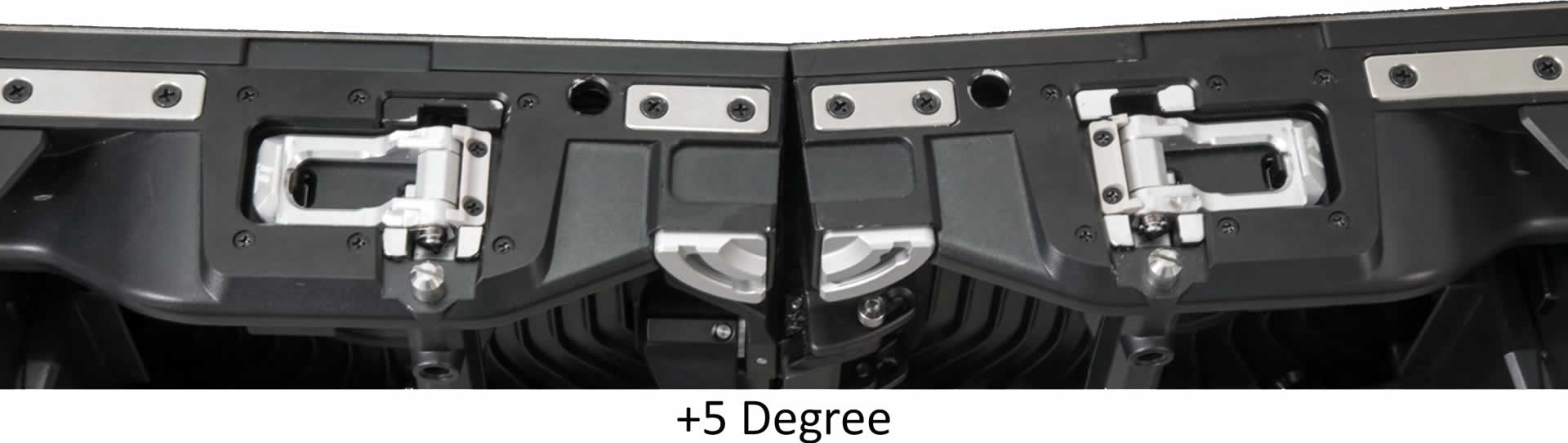

Supports both concave (inner) and convex (outer) curve screens for ultimate design fexibility. Unique locking system makes it simple to switch between flat or curved designs. Advanced locking system ensures curves are seamless without dark and light lines. Three-angle adjustment on the side locking system? Flat (0 º), concave (+5º), convex (-5 º).

3 IN 1 DESIGN

Lightweight and easy to handle. Change components without tools. Faster maintenance and repairs.

ADVANCE HANGING AND STACKING SYSTEMS AVAILABLE

Strong, light weight, modular design for fast setup and easy transport
Drop, pop, and lock ground support for quick and easy floor installation.
Hanging Bar comes in two styles and four sizes.

UNIQUE SIDELOADING FLIGHT CASE

10 panels per case 5 panel high design LED panels stored horizontally to prevent SMD damage. Flight cases are optimised to fit in vehicles for low cost transport. Fully stackable to save space.

Galerie photos


Propriétés techniques


  • Consommation électrique: 162,5 W
  • Dimensions en flight-case (X10): … x … x … cm
  • Dimensions unitaires: 500 x 500 x 96 mm
  • Poids en flight-case (X10): … kg
  • Poids unitaire: 8,3 kg
