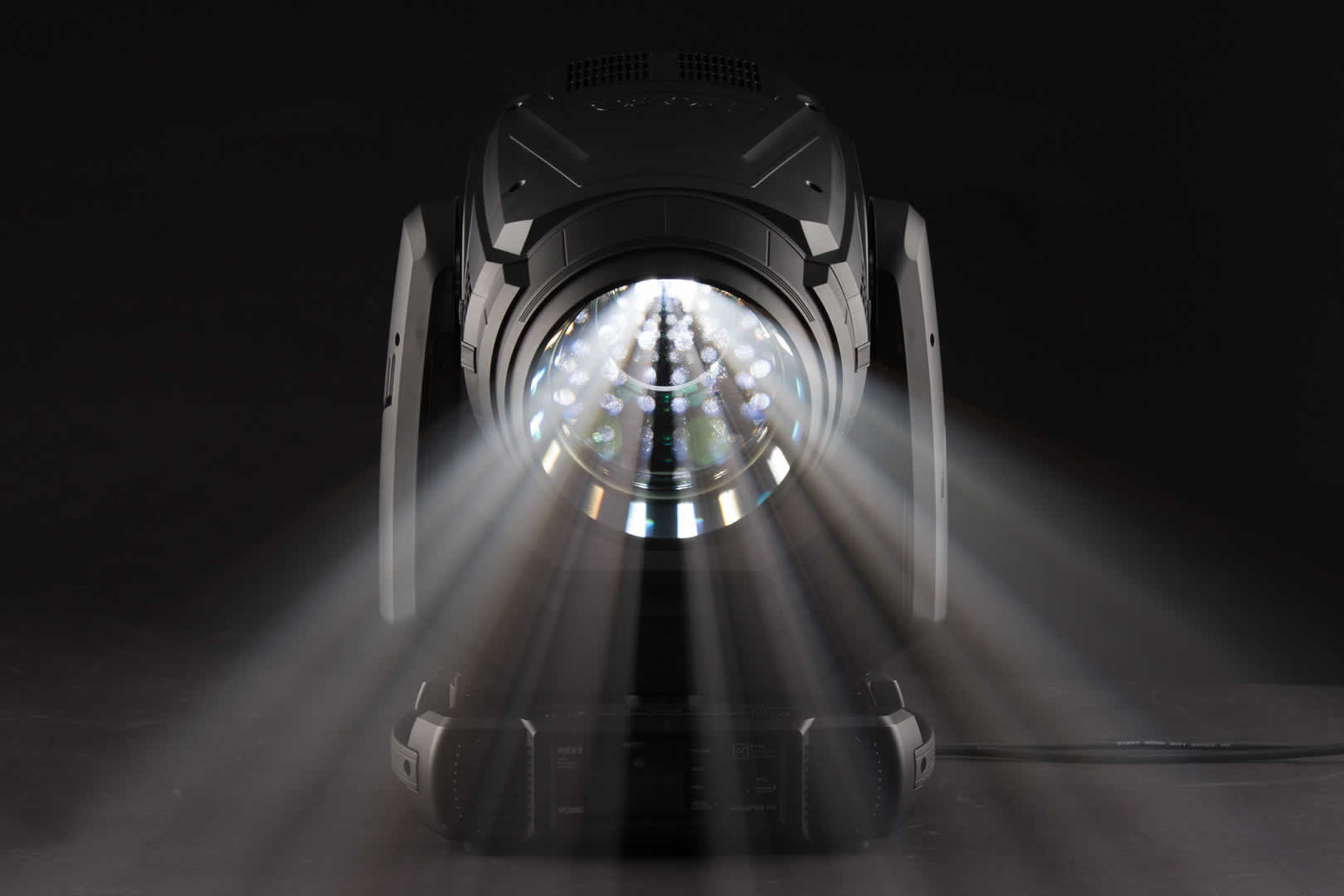

MEGA bright with MEGA features and still compact. The MegaPointe from Robe. OUR NEW REFERENCE POINT! Our all-new MegaPointe elevates the original all-in-one fixture to a whole new level. Unleash your creativity using the bright sharp parallel beams, excellent gobo projection, precise movement, smooth CMY colour mixing and dimming plus a multitude of beam splitting, wash and shaping effects. The Robe R&D team worked with Osram to provide a 470W lamp that aligns perfectly with the cutting edge optical system. This design provides a brilliant, crystal clear, razor-edged beam, adjustable from a punchy 1.8 out to a wide 42 degree zoom. Both static and rotating (glass) gobos produce precision in-air effects or projected images with a sharp, high-contrast, flat field. The newly designed effects engine can produce 12 varying beam and ‘flower’ effects. The beam can also be shaped using innovative shutter emulation, further creating a whole new blend of content & creativity.
SOURCE
Lamp: Discharge short arc lamp with integrated reflector
Rotating gobo wheel: 9 rotating, indexable and replaceable gobos + open
Static gobo wheel: 14 gobos + open
Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
Innovative Effect Engine consisting of 6 prisms placed on two wheels, producing 12 various Beam and Flower effects (Patent pending)
Beam shaper emulating framing shutters and creating rectangular beam shapes, rotatable and indexable (Patent pending)
Frost: variable 1° (light) and 5° (medium)
Motorized zoom and focus
Remote Hot-spot control: adjustable from 5:1 to 2.5:1 in spot mode and from 7:1 to 2.7:1 in beam mode (Patent pending)
Pre-programmed random strobe & pulse effects
Dimmer: 0 – 100%
CONTROL AND PROGRAMMING
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
Wireless CRMX™ technology from Lumen Radio (on request)
DMX Protocol modes: 2
Control channels: 39,34
Pan/Tilt resolution: 8 or 16 bit
Colour wheel positioning: 8 or 16 bit
CMY: 8 bit
CRI Selection: 80 or 90
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 8 or 16 bit
Static gobo wheel positioning: 8 bit
Animation wheel: 8 bit
Animation wheel rotation: 8 or 16 bit
Prism indexing & rotation: 8 bit
Frost: 8 bit
Zoom: 8 or 16 bit
Focus: 8 or 16 bit
Hot-Spot: 8 bit
Dimmer: 8 or 16 bit
MOVEMENT
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Automatic Pan/Tilt position correction
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patent pending)
ROTATING GOBOS
Glass gobos: 9 rotating gobos
Outside diameter: 15.9 mm
Image diameter: 12.5 mm
Thickness: 1.1 mm
High temperature borofloat or better glass
"SLOT&LOCK" system for easy replacement of gobos
STATIC GOBOS
Aluminium wheel with fixed gobos: 10 gobos & 4 beam reducers + open position
THERMAL SPECIFICATION
Maximum ambient temperature: 45 °C (113 °F)
Maximum housing temperature: 80 °C (178 °F)
Minimum operating temperature: -5 °C (23 °F)
ELECTRICAL SPECIFICATION AND CONNECTIONS
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: 670 W at 230 V / 50 Hz
Power in connector: Neutrik powerCON TRUE1
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in: RJ45
APPROVALS
CE Compliant
cETLus Compliant (pending)
RIGGING
Mounting positions: Horizontally or vertically
Universal operating position

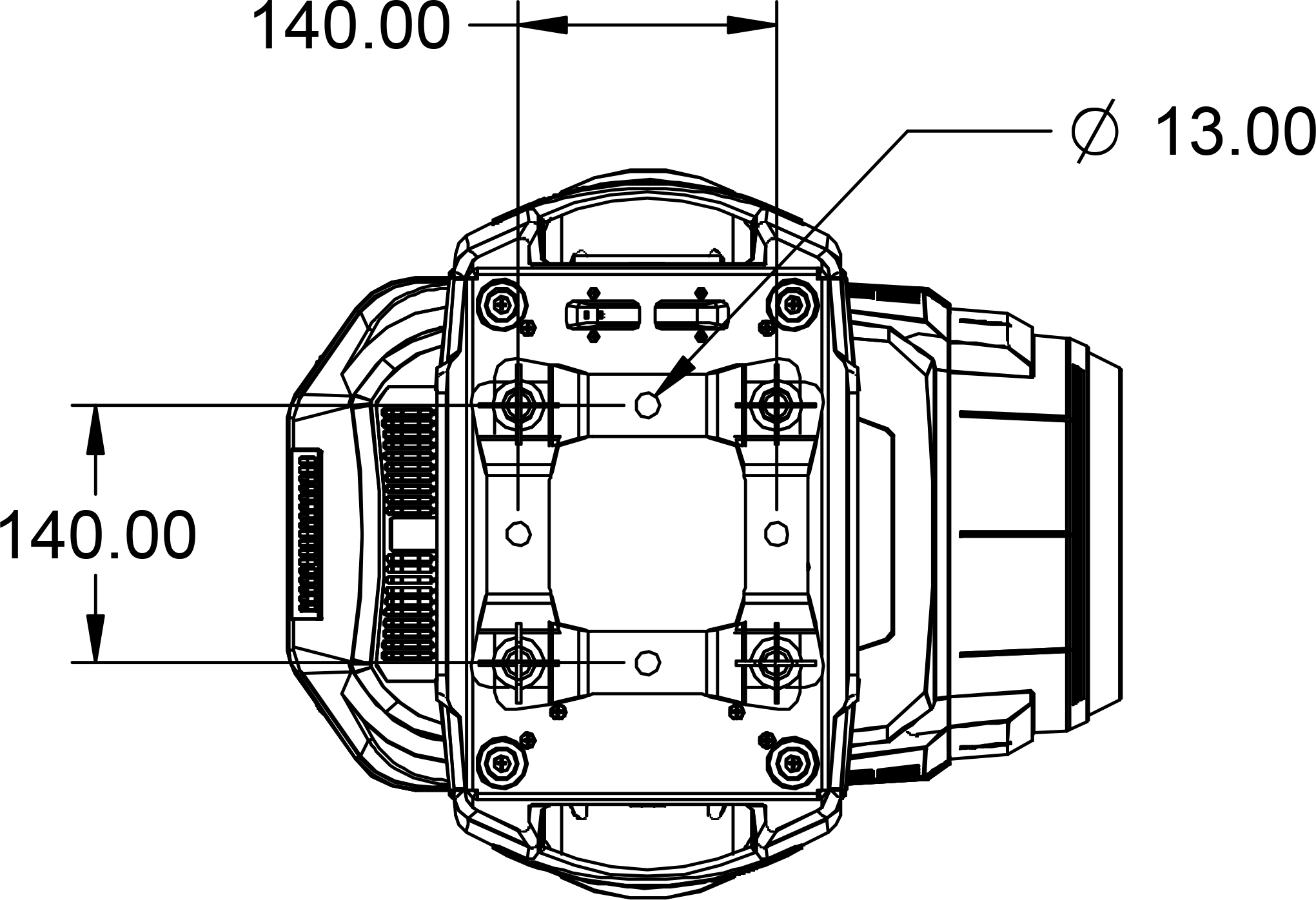

Mounting points: 2 pairs of 1/4-turn locking points
