AYRTON Ghibli

Le premier spot hybride motorisé à leds Ayrton propose un équipement ultra complet avec un faisceau puissant dénué de point chaud.
Son optique à 13 lentilles projette un faisceau homogène, à flux constant de 23 000 lumens quelle que soit la focale de son zoom. Un vrai zoom linéaire d’amplitude extra-large : 7°-56. Il assure toutes les fonctions, à un niveau de qualité très élevé.
Les couteaux traversants permettent de fermer complètement et créer des effets sans limite.

OPTICS
  • 13 elements 8:1 zoom high resolution optic system
  • Beam aperture: 7° to 56°
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • 137 mm front lens for ultimate performance
LIGHT SOURCE
  • 30K low-etendue White Light Engine
  • Total luminaire output: up to 23,000 lumens
  • CRI: up to 90 with High CRI filter
  • Rated source life: up to 25,000 hours
  • Flicker-free source management, suitable for TV applications and all video recorded events
MOVEMENT
  • Extremely accurate positioning
  • Moving head operated via either 8 or 16 bit resolution
  • High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements
  • PAN and TILT automatic repositioning
  • Moving head range: 540° (PAN), 280° (TILT)
COLOURS
  • Sophisticated colour mix system providing CYM colour mixing
  • Variable CTO colour temperature correction
  • Fixed colour wheel with High CRI filter and six saturated colour filters
GOBOS
  • Indexable rotating gobo wheel with 7 high precision glass gobos plus open position
  • Adjustable speed rotating gobo in both directions
  • Fixed gobo wheel with 8 high precision glass gobos plus open position
  • Gobo Ø: 30.0 mm – Image Ø: 22.0 mm
FRAMING SYSTEM
  • 4 individually positionable shutter blades
  • Rotation of the framing system module: +/- 60°
IRIS DIAPHRAGM
  • Fast iris diaphragm with adjustable dynamic effects
  • ris range : 15% to 100% open
EFFECTS
  • Graphic animation effect wheel with continuous rotation in both directions
  • 5-facet rotating and indexable prism
  • 2 frost filters: soft edge & hard edge
DIMMER / STROBE
  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FACILITIES
  • Local DMX addressing of the luminaire and its optional parameters through its built-in LCD panel control
  • Remote DMX addressing of the luminaire and its optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version
HARDWARE FACILITIES
  • Graphic LCD Display for setting address and special functions, with flip function
  • Clicking jog wheel to set functions
  • Over-heating protection
  • XLR 5-pin male/female connectors for DMX connections
  • Ethercon RJ45 IN / OUT connectors for ArtNet connections
CONTROL
  • DMX 512 protocol, through DMX cable or wireless system
  • Stand-alone mode and Master/Slave modes
  • DMX-RDM compatible
  • Integrated DMX-RDM wireless receiver from LumenRadio™
  • Local control panel, with LCD display
  • DMX 512 Input / Output through XLR5 connectors
  • ArtNet protocol through RJ45 connectors
  • Choice of 3 DMX modes (from 34 to 58 DMX channels)
POWER SUPPLY
  • Electronic supply with active PFC
  • 110 to 240 Volts – 50/60Hz
  • Power 900 W max
COOLING SYSTEM
  • Advanced cooling system based on heatpipe technology
  • Self adjusting variable speed fans for quiet operation
  • Selectable ventilation user modes
  • Safety protection against over-heating
HOUSING
  • Moving head skeleton made of aluminium
  • Heatsinks in aluminium and copper with satin finish
  • Moulded covers in self-extinguishing, fire retardant ABS PC (V0 class)
  • Two side handles for transportation
  • IP20 protection rating
  • Exterior finish: black (Carbon)
INSTALLATION
  • Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps

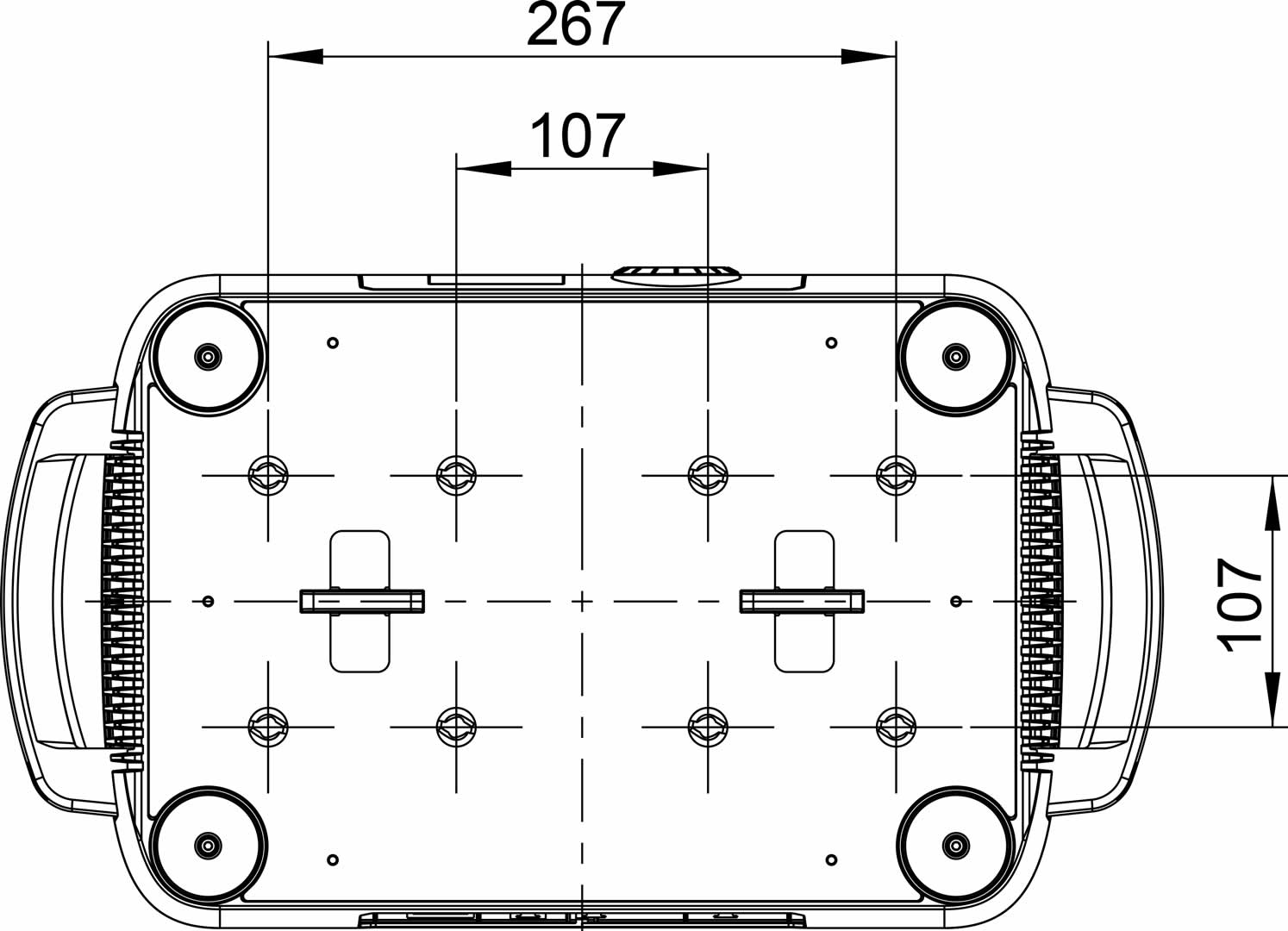

  • Mounting points: eight ¼ turn locking fittings allowing three different installation of Omega brackets on luminaire
  • Safety cable attachment point
OPERATING PARAMETERS
  • Operating positions: all
  • Maximum permitted ambient temperature authorised (Ta max): 45°C (113°F)
  • Minimum permitted ambient temperature authorised (Ta min): -10°C (14°F)
  • Minimum usage distance: 2.0 m (79 inches)
COMPLIANCE
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU

Galerie photos


Propriétés techniques


  • Consommation électrique: 900 W
  • Dimensions en flight-case (X1): 545 x 765 x 360 cm
  • Dimensions unitaires: 494 x 729 x 281 mm
  • Poids en flight-case (X1): … kg
  • Poids unitaire: 35,6 kg
