Chauvet Vesuvio II



Vesuvio II illuminates bursts of fog with advanced RGBA+UV LED color mixing, providing ferocious effects for events and performances. Featuring an impressive 40,000 cubic feet of fog per minute, it boasts a best in class 40 seconds of full burst output. New dual LED sections give greater creative control for a more even coverage of light. The Vesuvio II is built for efficiency, consuming only 80ml/min of QDL fluid. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets. It works best with the Chauvet HDF high-density and QDF quick dissipating fluid.

AT A GLANCE
  • Advanced red, green, blue, amber, and UV (RGBA/UV) LED color mixing
  • 40 second continuous bursts of fog, for intense effects and performance
  • 40,000 CFM fog output for intense, large effects
  • 2.5 l fluid tank for reliability in production
  • Strong, sturdy construction for numerous production types
  • DMX control for ease of use in production situations
  • 3- and 5-pin DMX input/output connections
SPECIFICATIONS
OPTICAL
  • Light Source: 10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 hours life expectancy
  • Illuminance (Center): 199.5 lux @ 5 m
  • Illuminance (Linear): 154 lux @ 5 m
  • Illuminance (Both): 334 lux @ 5 m
  • PWM Frequency: 126 Hz
DYNAMIC EFFECTS
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Output: 40,000 cfm
  • Low Fluid Shutdown: No
CONSTRUCTION / PHYSICAL
  • Exterior Color: BLACK
  • Housing Material: Steel
  • Tank Capacity: 0.7 gal (2.5 l)
  • Fluid Consumption: 80 ml/min
CONNECTIONS
  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
CONTROL
  • Control Protocol: DMX
  • DMX Channels: 15
  • Modes/Personalities: 1 personalities
  • On-Board Control: Yes
  • Included Remote: No
ELECTRICAL
  • Input Voltage (120V): 120 VAC, 60 Hz
  • Input Voltage (220V): 230 VAC, 50 Hz
  • Power and Current (120V): 1,480 W, 12.55 A @ 120 V, 60 Hz
  • Power and Current (220V): 2,880 W, 12.55 A @ 230V, 60 Hz
  • Heat-up Time (120V): 10 min
  • Heat-up Time (220V): 10 min
  • Breaker Size (120V): 15A
  • Breaker Size (220V): 15A
CERTIFICATIONS / QUALIFICATIONS CE
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Galerie photos

chauvet_vesuvio-ii_10
chauvet_vesuvio-ii_11

Propriétés techniques


  • Consommation électrique: 2800 W
  • Dimensions en flight-case (X1): … x … x … cm

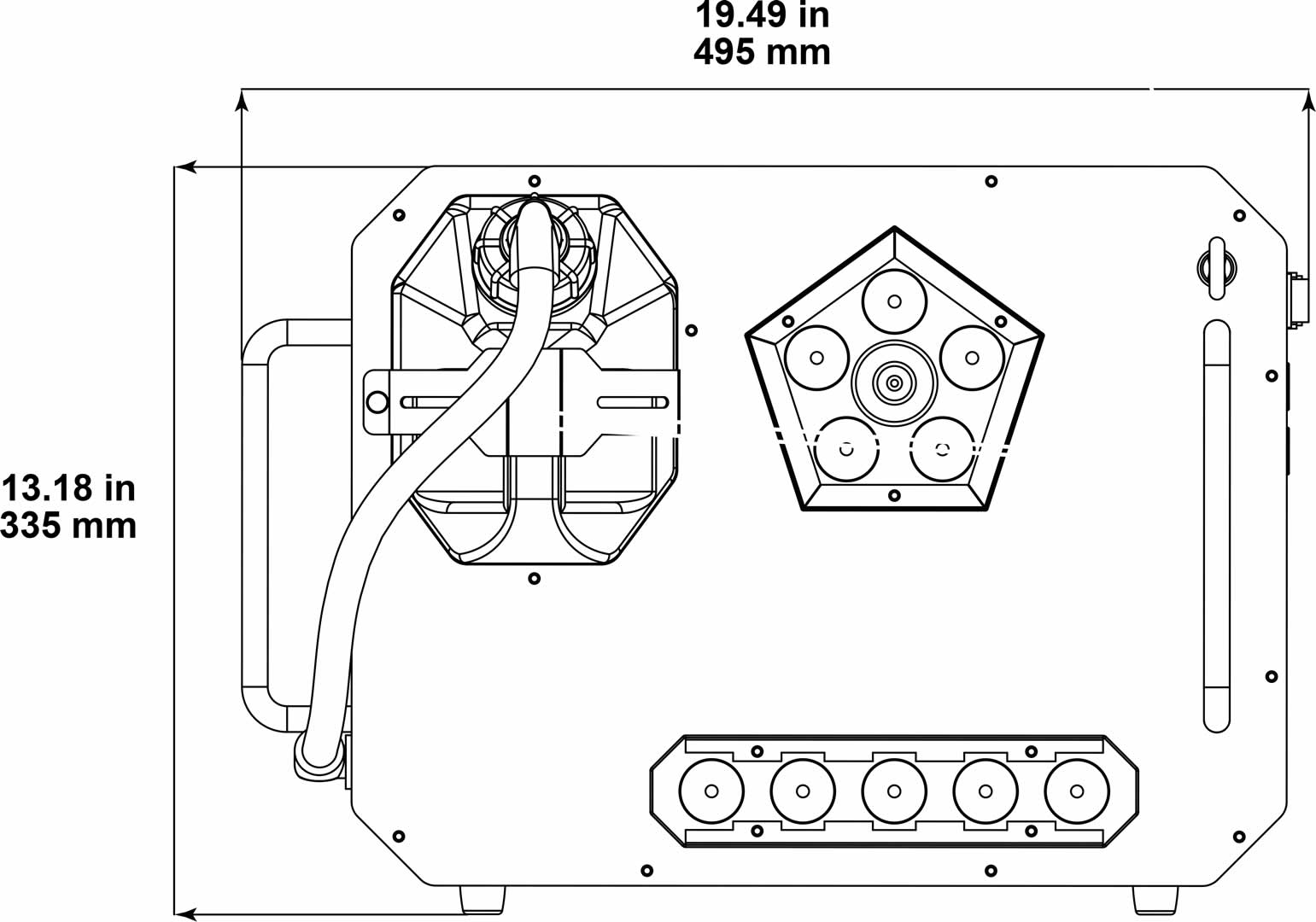

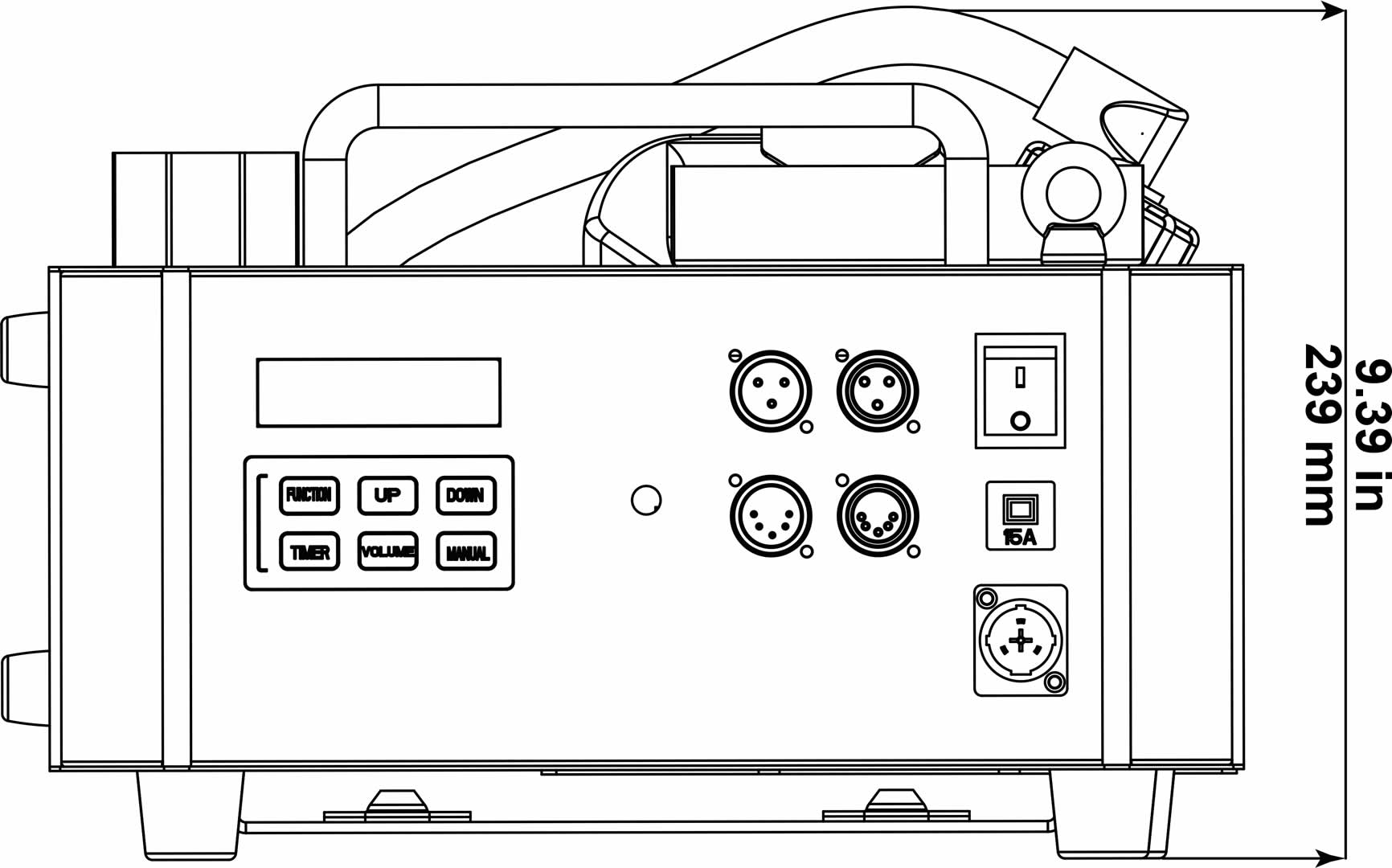

  • Dimensions unitaires: 495 x 335 x 239 mm
  • Poids en flight-case (X1): … kg
  • Poids unitaire: 12,9 kg
