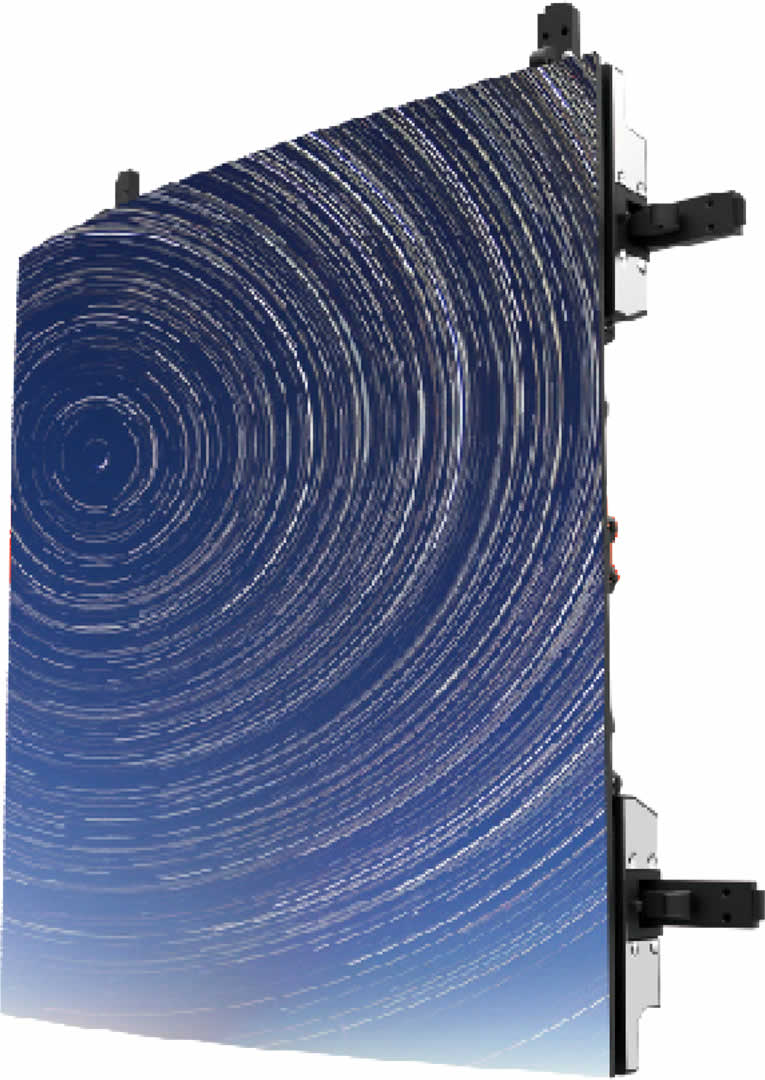

Infiled X3.9 Curve

Perfect Wave Screen Solution

Applications :

• stage performance
• public square
• shopping mall
• stadium
• hotel…

Key Features :

• Faster and easier to build
• Separate control unit
• Allow for perfect smooth curves
• Flat panel and corner panel optional

Part Number

• Pixel Pitch : 3.9mm
• Physical Density : 65,536pixels/m2
• LED Arrangement : 2020 Black LED
• Module Resolution : 128×32pixels
• Module Dimension : 500×125mm
• Cabinet Resolution : 128×128pixels
• Brightness Level : 1,200~1,700nits
• Max Power Consumption : 200W/panel
• Ave Power Consumption : 66.7W/panel
• Viewing Angle : 140°/140°
• Operating Power Source : AC90-260V 50-60Hz
• Operating Temperature : -10~+45°C
• Refresh Rate : 1,000~2,400Hz (configurable)
• Curvable Rate : 5 Levels(+20° ,+10°, 0°,-10°,-20°)
• Life Span : 100,000 Hours?
• MTBF : 5,000 Hours
• Protecting Rating : IP30
• Signal Input Source : Composite, S-Video, Component, VGA, DVI, HDMI, SDI, HD SDI
