Robe onePATT

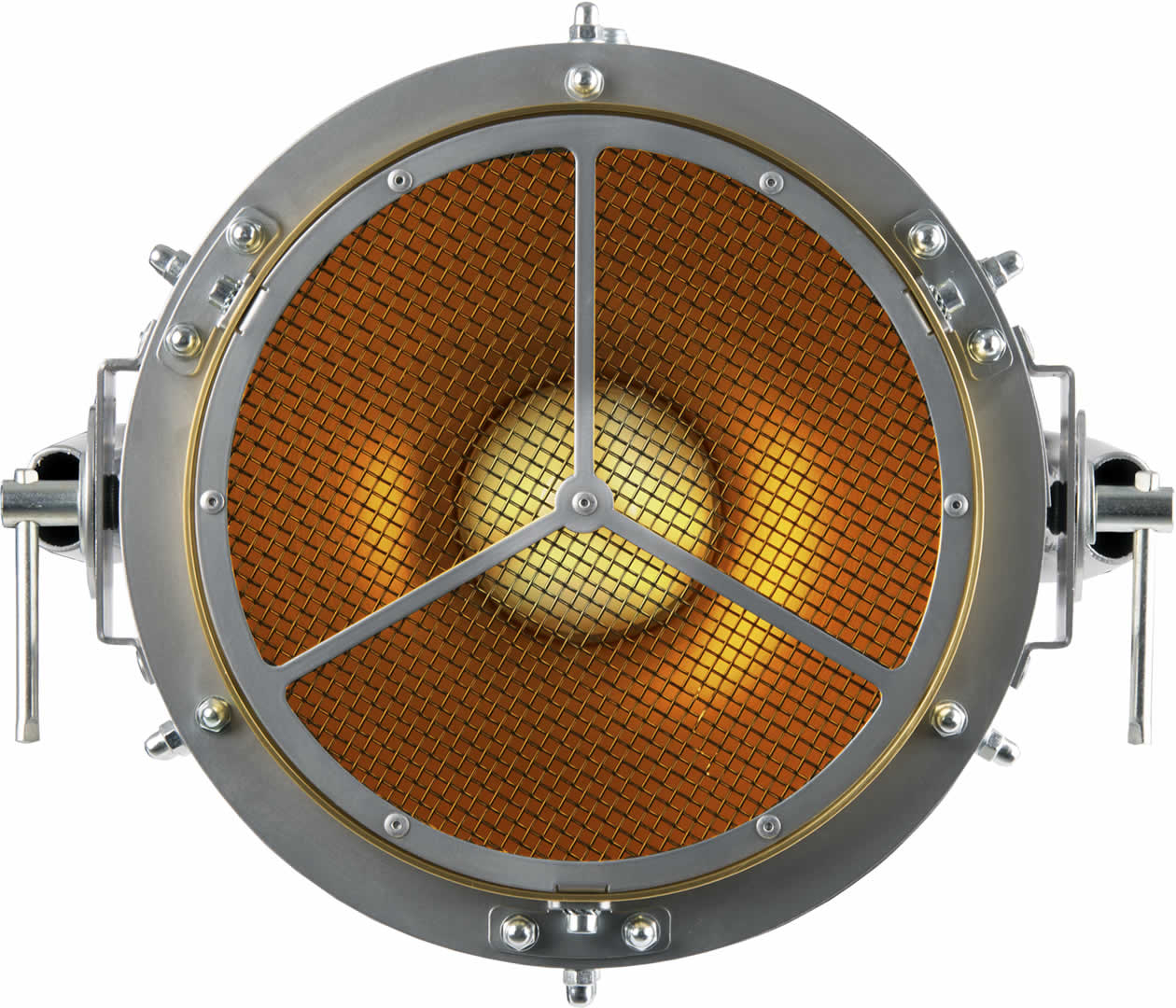

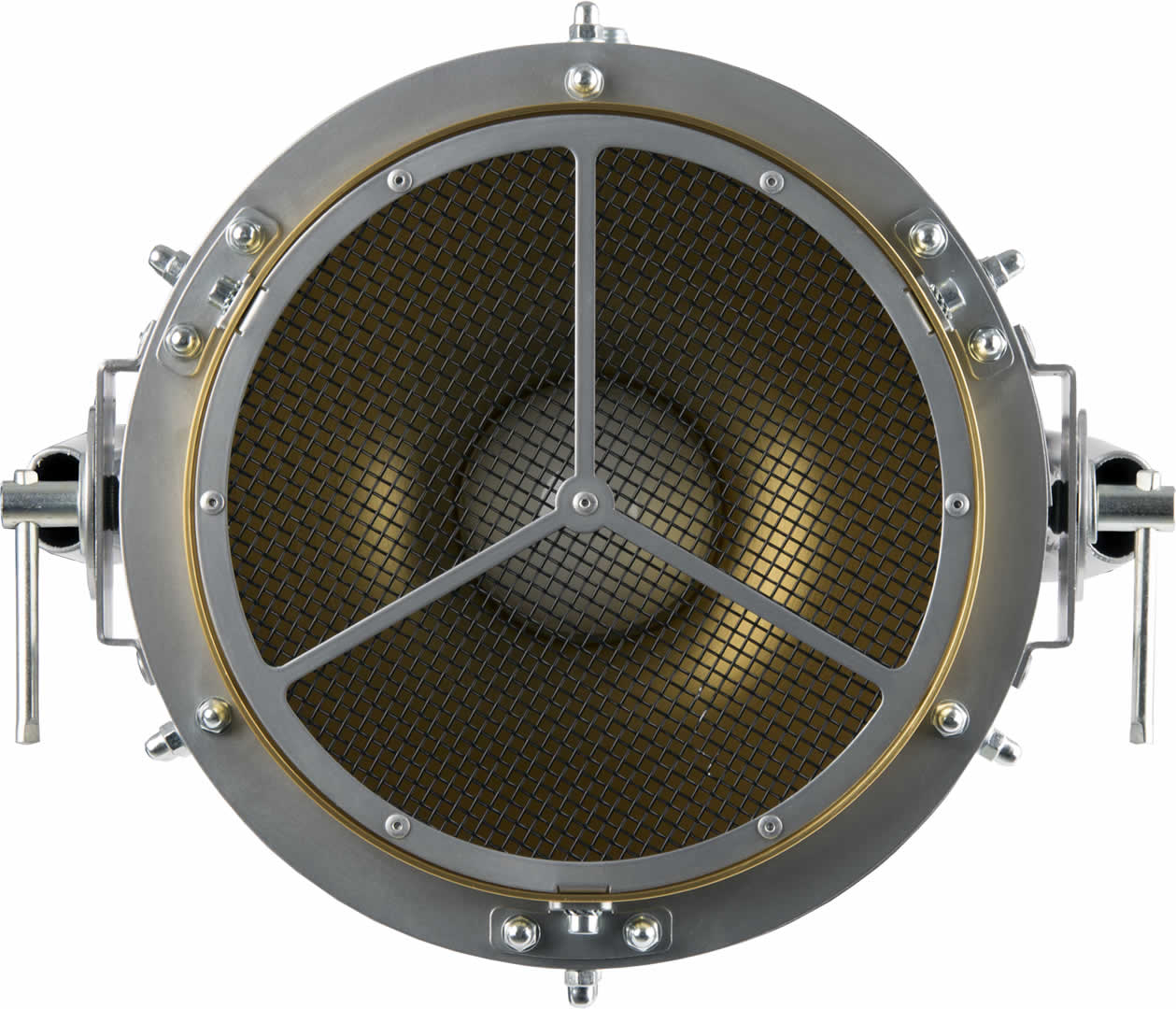

Another member of the extended PATT family of retro-style lighting fixtures, onePATT is a RGBW multichip, high-powered, multicolored LED fixture housed in a super slim, lightweight, brushed metal retro-style frame.

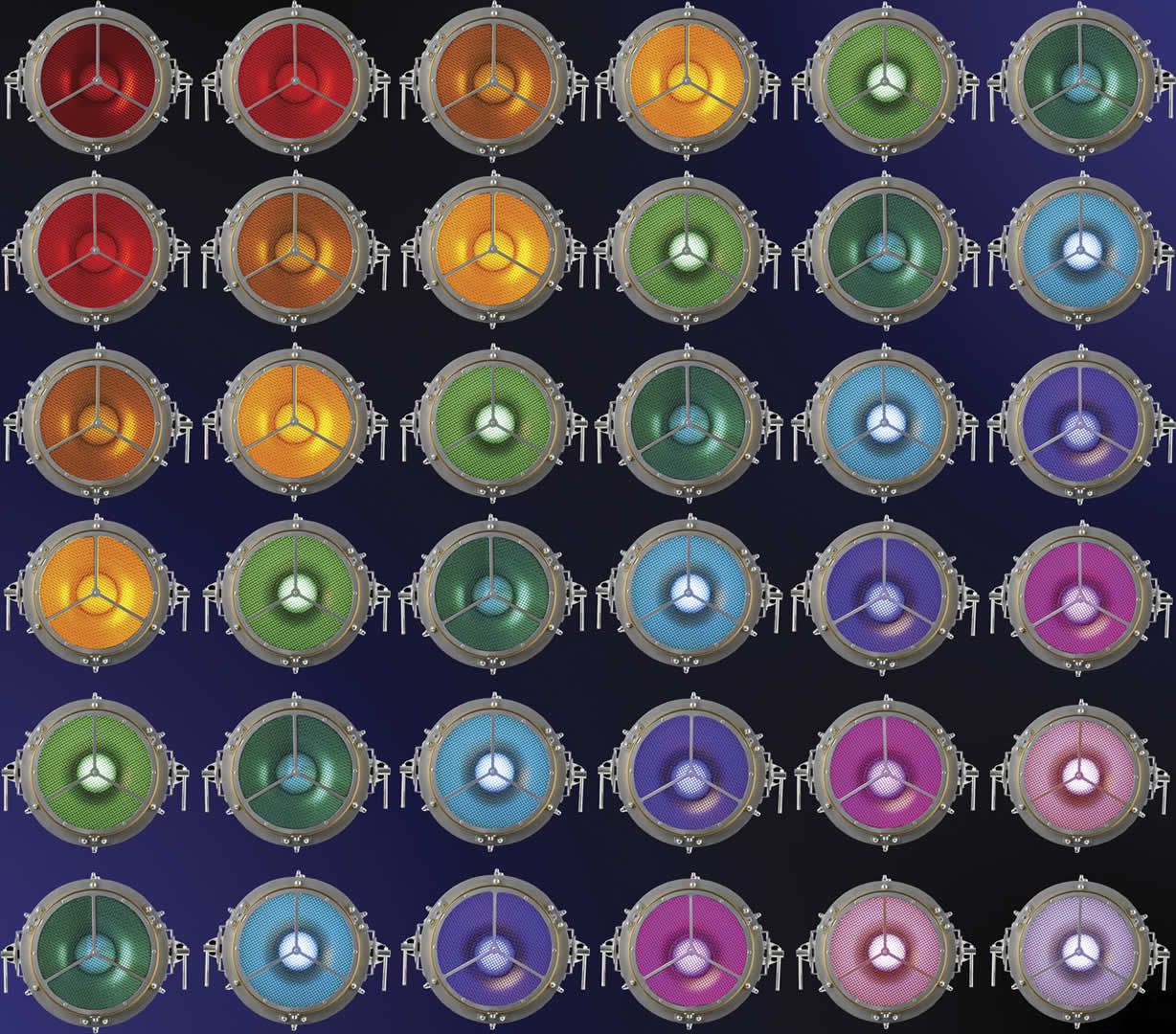

The unit’s high light output can be pixel mapped and therefore controlled and used for large scale matrix applications, as well as individual illuminating needs.
It features an integrated intelligent electronic Control System that guarantees flicker-free driving, protection from overheating and together with remote addressing, calibration and status messaging with a Power Supply unit, it ensures easy, remote maintenance and long term reliability.
Total quantity of seven onePATTs can be connected to the PATT Driver – a power and data box specifically designed for pixlePATT, PATT 2017 and onePATT family of products.

SOURCE

• Light source type: 30W RGBW multichips
• LED life expectancy: min. 20.000 hours
• Typical lumen maintenance: 70% @ 20.000 hours

OPTICAL SYSTEM

• 200mm parabolic aluminium reflector with special gold-brown coating
• half-ball diffusor dome distributing light evenly from RGBW LED source inside of the reflector

DYNAMIC EFFECTS

• Colour mixing mode RGBW or CMY
• Individual control of each RGBW pixel
• Variable CTO: 2.700K - 8.000K
• Virtual Colour Wheel: with 66 preset swatches
• Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and direction
• Shutter: Electronic with variable speed strobe (max. 20 flashes per second)
• Pre-programmed random strobe & pulse effects
• High resolution electronic dimming: 0 - 100%

CONTROL AND PROGRAMMING

• Setting & Addressing: two-row LCD display & 4 control buttons
• Protocols: USITT DMX-512, RDM, ArtNet, Kling-Net, sACN
• Wireless CRMX™ technology from Lumen Radio (Optional)
• DMX Protocol modes: 6
• Control channels: 13, 32, 40, 47, 53, 60
• RGBW or CMY: 8 or 16 bit (internal 18 bit)
• Dimmer: 8 or 16 bit (internal 18 bit)

THERMAL SPECIFICATION

• Maximum ambient temperature: 45 °C (113 °F)
• Maximum surface temperature: 70 °C (158 °F)
• Minimum operating temperature: -5 °C (23 °F)

ELECTRICAL SPECIFICATION AND CONNECTIONS

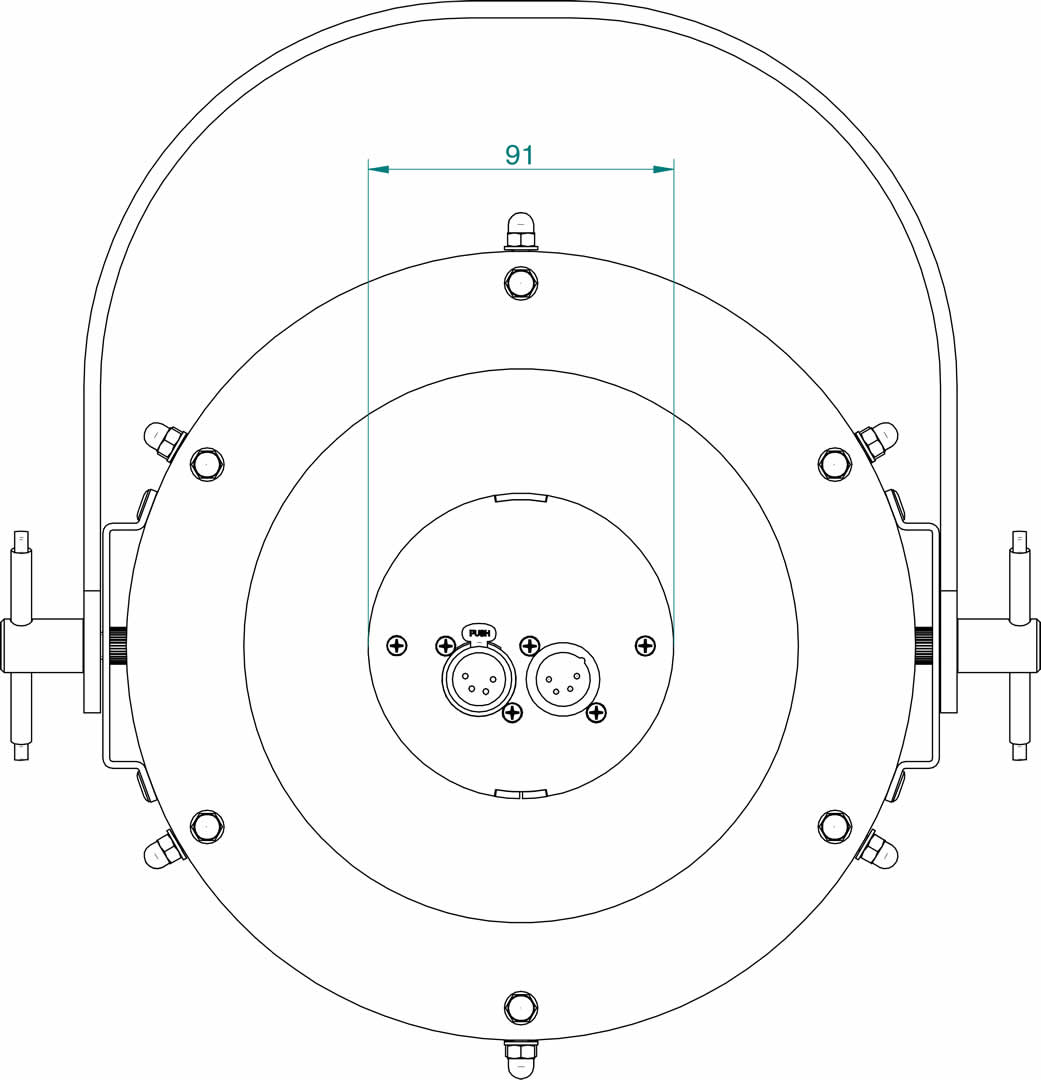

• Power and Data in: Locking 4-pin XLR

APPROVALS

• CE Compliant
• cETLus Compliant (pending)

RIGGING

• Mounting points:

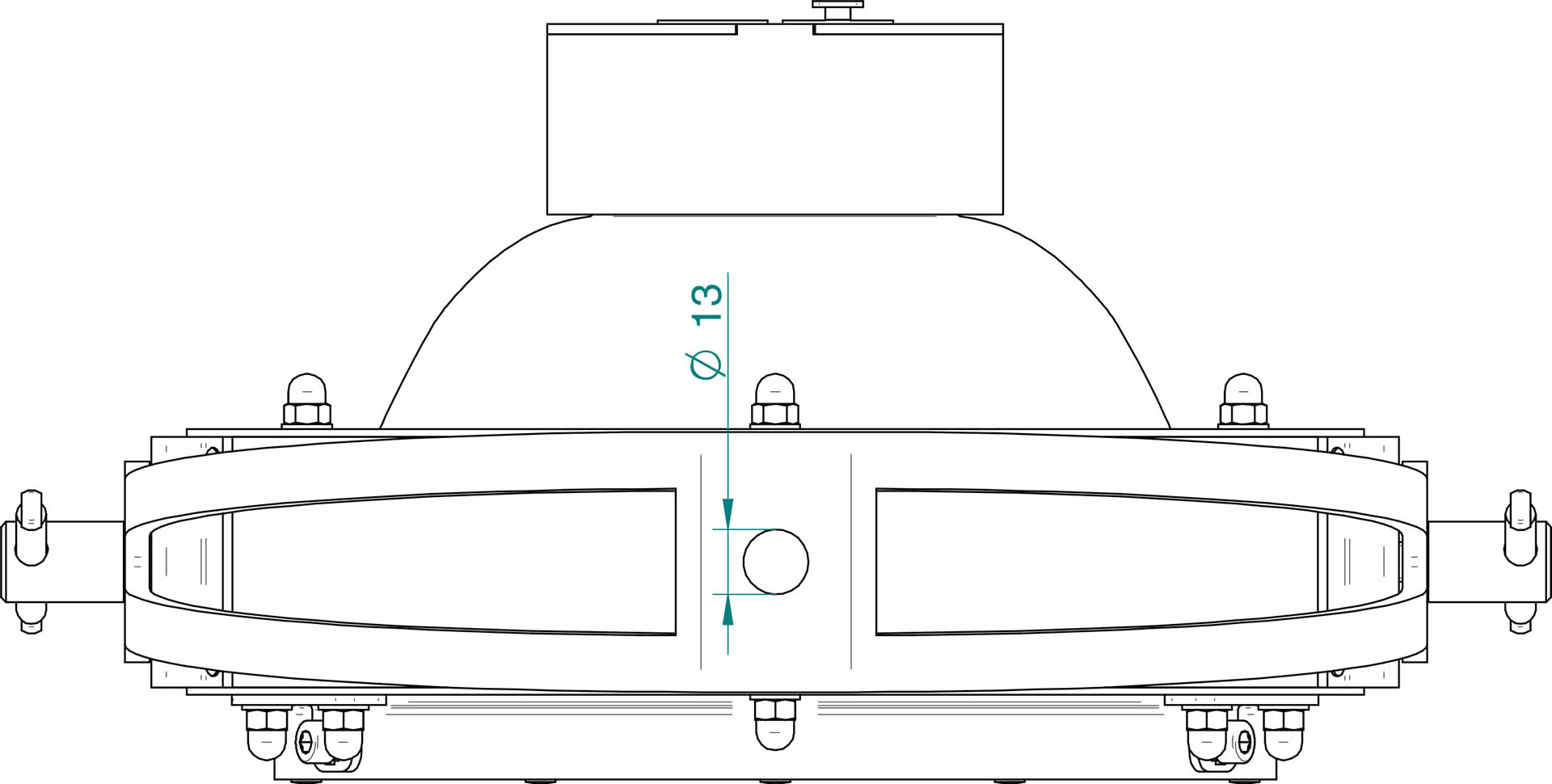

  • onePATT: 1x 13mm hole for Clamp mounting
• Operating position:
  • onePATT: any operating and mounting position
