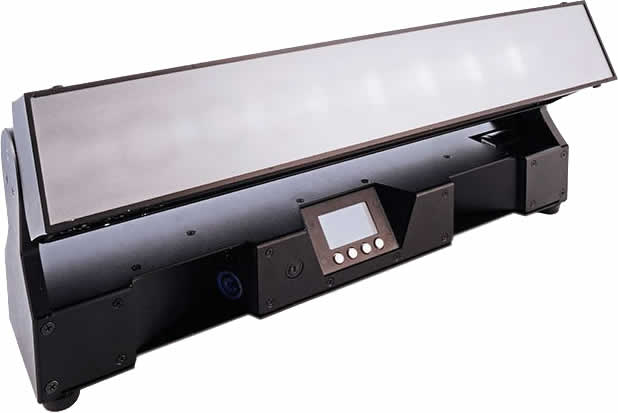

The impression X4 Bar 10 is a high performance batten that incorporate 15 Watt RGBW LEDs packed tightly to give a full line of light. The X4 Bar 10 uses 10 LEDs. High quality optics ensure a smooth, homogenized output across the batten through a broad pallet of pastel and saturated colors, complimented by GLP’s exceptional dimming which ensures that there is no color shift, just smooth even fades. DMX control offers full pixel mapping capabilities, whilst both units feature a 7:1 zoom ranging from 7 to 50 degrees, giving effects from a narrow angle light curtain to a wide angle washlight. The X4 Bar also features a motorized tilt, for fast refocussing or to be used to add more dynamics to the output beam. Multiple X4 Bar units can be aligned, and maintain consistent pixel spacing between adjacent units.
Technical data
LED-Source
LED Type : Osram Ostar
Lifetime (Hours) : 50.000
LED count : 10
LED Colors : RGBW
Optical system
minimum Zoom (Deg) : 7°
maximum Zoom (Deg.) : 50°
Effects
Dimmer : 0-100% electronic
Shutter : max. 10 Hz
Color temperature control
electronic
2.500 – 10.000 K
Internal Effects
LED Macro Effects
Color presets
Movement
Resolution : 8 – 16 Bit
Position Feedback : yes
Tilt (Degrees) : 210°
Control
Control Modes
Compressed
HighRes
Pixel-Mapping
Display
illuminated graphic LCD
self charging buffer battery
Protocol
DMX (USITT DMX512-A)
RDM (ANSI/ESTA E1.20)
RDM : bidirectional communication
Cooling
temperature controlled
overheating protection
Connectors
Signal connection
XLR 5-Pin
In/Out
Power Input
Neutrik PowerCON
In/Out
Operating Condtions
Mains voltage : 100 – 240 VAC / 50 – 60 Hz
Power (Watt @ 230V) : 280 W
Fuse : 20mm T 5A
Maximum ambient temperature : 45°C / 115°F
Operating Position : any
EEC : E
EEI : 1,314
Ec (kWh/1.000h) : 184
Mounting Options
Standing : Rubber feet
Hanging (horizontally) : adjustable bar for sideways truss installation (optional)
