Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film
SOURCE
950W Cool White LED Engine
50,000 Total Output Lumens, 6,500K, CRI70 (CRI82 with HCRI Filter)
2:1 Hotspot Ratio
30,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
124,119 LUX 11,531 FC @ 16.4’ (5m) (Min. Zoom)
4,096 LUX 381 FC @ 16.4’ (5m) (Max. Zoom)
EFFECTS
4-Blade Rotating Full Black Out Framing Shutter Module
+/-50? Indexable Framing Shutter Module
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear, Rotating and Indexing Prisms
2 Linear Wash Frost Filters
Motorized Iris
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays
COLOR
Full CMY-Flag Color Mixing System
Linear CTO-Flag Color Correction
High CRI (>82) Filter
6 Dichroic Colors + White (Open)
GOBOS
2 Gobo Wheels
6 Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 29.8mm / ID 25mm**
7 Static Interchangeable / Indexing Metal Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (37 / 61)
DMX, Art-NET and sACN Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
5pin IP65 DMX In/Out
IP65 RJ45 etherCON In/Out (Art-NET and sACN)
Power Twist TR1 Power In
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1,400W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)
INCLUDED ITEMS
Foam Inlay

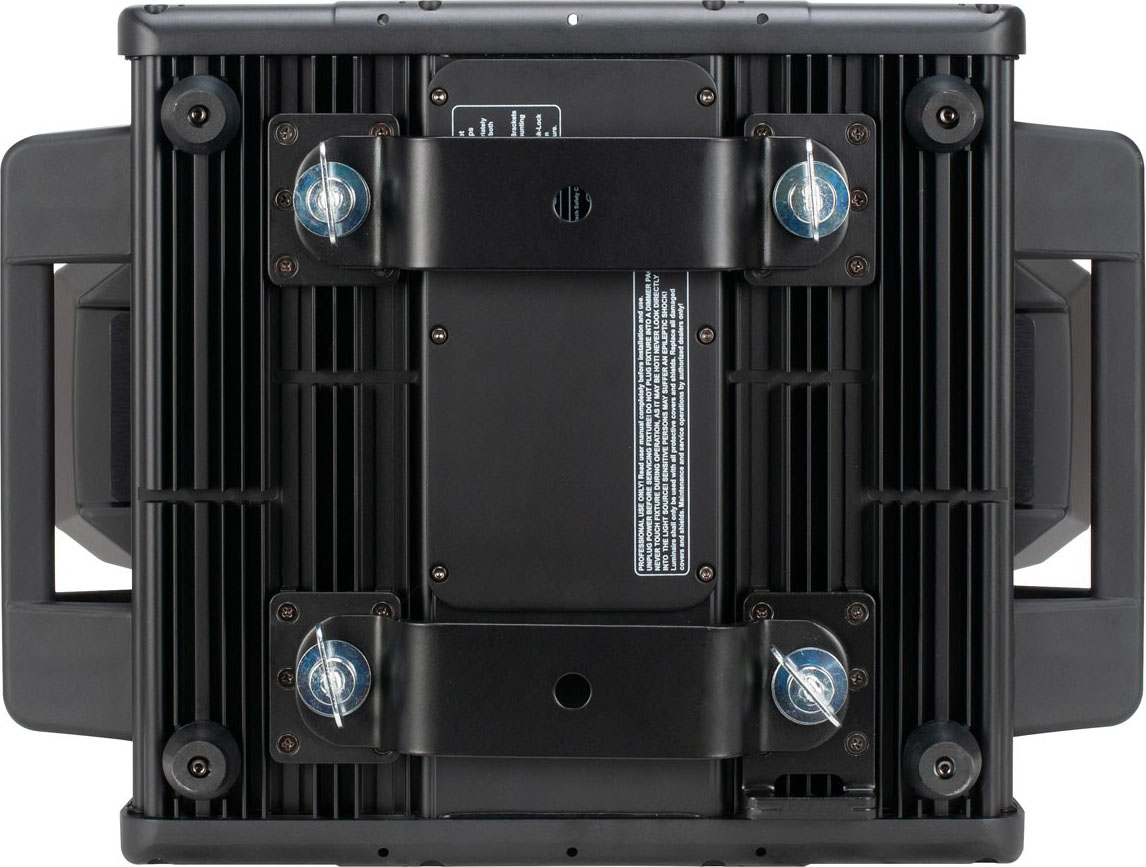

2 Omega Brackets
Power Twist TR1 to CEE 7/7 Cable
IP Ethercon Cable
IP XLR Cable
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.
