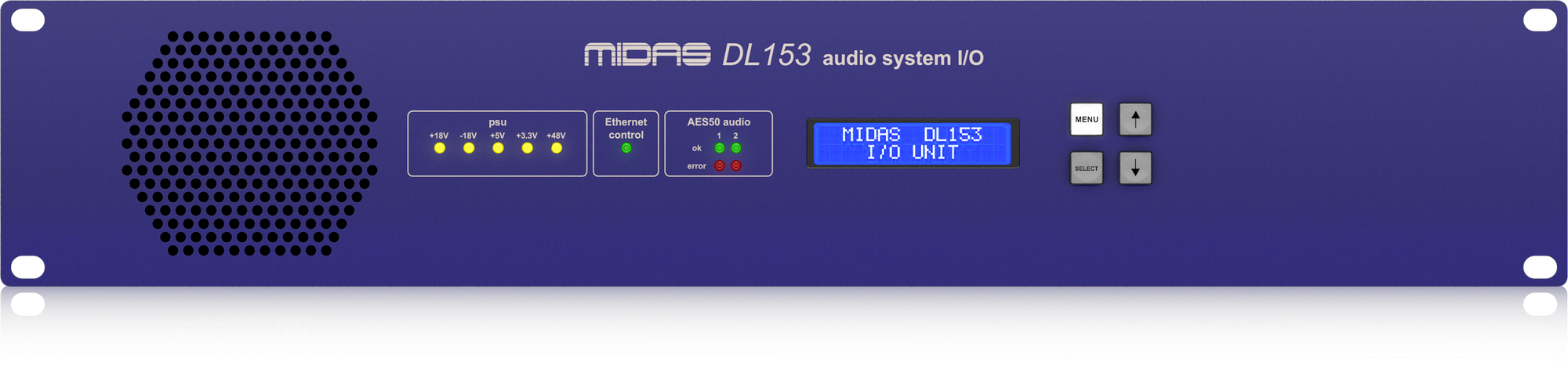

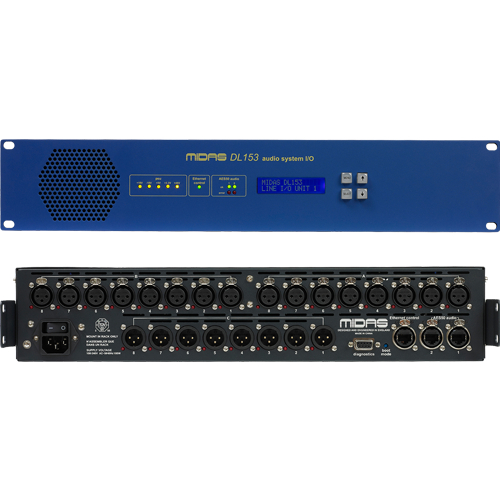

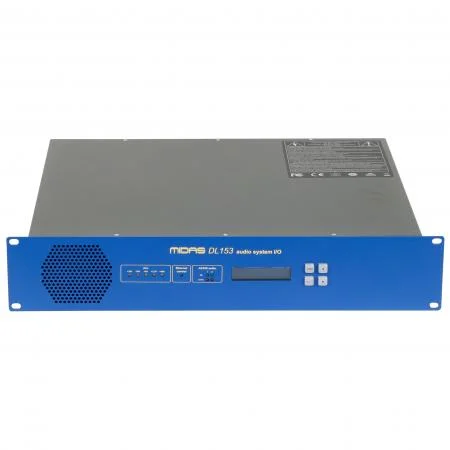

DL153 is a 2U 19" fixed-configuration rack I/O unit with 16 mic/line level inputs and 8 line level outputs and delivers legendary Midas sound quality utilising our time-tested and road-proven technologies. Featuring award-winning Midas microphone preamplifiers with 2.5 dB analogue gain steps and two AES50 network ports providing dual redundancy, the DL153 is the ideal partner to all Midas PRO and M32 Series digital consoles, enabling a digital snake connection from Front of House to stage.
| Sample rate |
48 kHz, 96 kHz |
| Dynamic range |
>107 dB unweighted (20 Hz - 20 kHz) |
| Maximum input level | |
| CMRR @ 1 kHz | |
| Mic EIN (40 dB Gain) |
-126 dBu |
| Maximum Output Level |
+21 dBu into 600 O |
| Output Noise (Unity Gain) |
-86 dBu |
| Frequency Response |
±0.5 dB (20 Hz - 20 kHz, relative to 1 kHz) |
| THD+N (Unity Gain) |
<0.01% |
| Crosstalk @ 1 kHz |
| Analogue Inputs |
16 |
| Type |
Mic/Line Level |
| Connector |
3-pin XLR Balanced |
| Input Impedance |
10k O |
| A/D Conversion |
24 bit, 96 kHz with 128 times oversampling |
| Phantom Power |
+48V, individually switchable per channel |
| Analogue Outputs |
8 |
| Type |
Line Level |
| Connector |
3-pin XLR Balanced |
| Output Impedance |
50 O |
| D/A Conversion |
24 bit, 96 kHz with 128 times oversampling |
| Network Connections |
2 |
| Connector |
Neutrik etherCON with status LEDs |
| Redundancy |
Dual cable redundancy |
| Network Interface |
Conforms to AES50-2011 |
| Ethernet Control Port |
1 |
| Connector |
Neutrik etherCON with status LEDs |
| Power |
1 |
| Connector |
IEC mains inlet |
| Mains Input Voltage |
100 to 240 VAC, 50-60 Hz |
| Power Consumption | |
| Dimensions |
483 x 416 x 88 mm (19.0 x 16.4 x 3.5") |
| Net Weight |
6.7 kg (14.7 lbs) |
| Operating Temperature Range |
+5°C to +45°C |
| Storage Temperature Range |
-20°C to +60°C |
