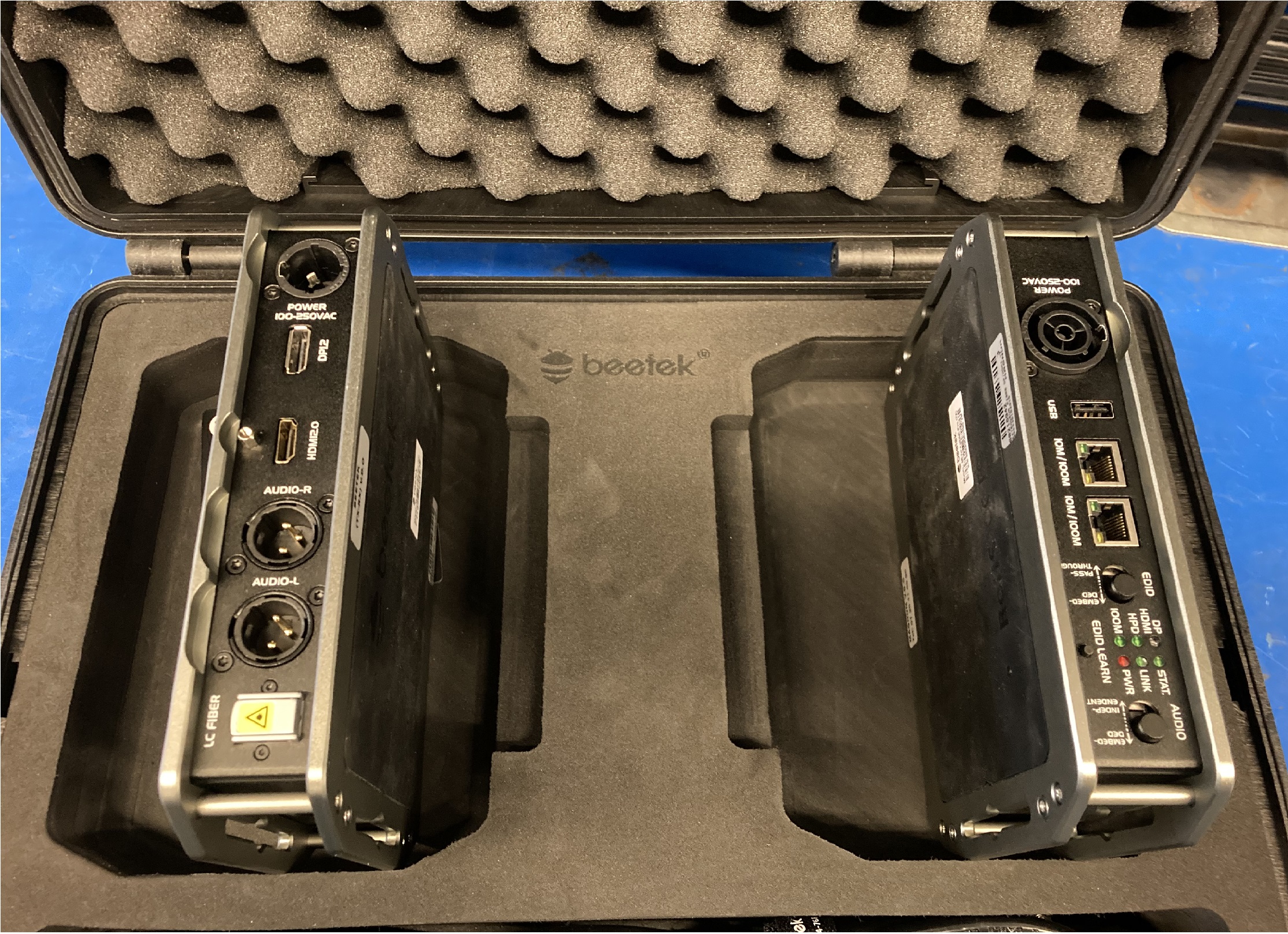

Beetek Extendeur M1-DP&HDMI-Pro
DP 1.4 and HDMI 2.0 Fibre Extender
Beetek DP 1.2 and HDMI 2.0 Fibre extenders are industry leading fibre extension solution with resolution support upto 4K@60 4:4:4 at 32.4 Gbps transmission rate. The extenders are capable of extending USB 1.1, Ethernet and audio in/out along with dual video input from HDMI and Display Port. Single LC optical fibre cable transmission support distance upto 300 metres. Built in EDID management and simplified EDID learning from the connected monitors enables the best video output to the displays connected.
The device can be mounted in the rack side by side on 1U and power loop in/out helps for easy installation. The product is suitable for Rental, Live Events and video processor, high end work station video extension applications.
- Data Rate: 32.4 Gbps
- Supported Resolution:4K@60 4:4:4, 4@60 4:2:0
- Supported Frame Rate:24,30,50 and 60 fps
- Supported Color Sampling: 4:4:4, 4:2:2, 4:2:0
- Color Bit Depth: 8, 10, 12 bit
- Signal Type: HDMI 2.0 and DP 1.2
- Max Resolution * Frame Rate * Color sampling support bandwidth upto 32.4 Gpbs
- Product Dimension - L X W X H
- Power : AC Power supply
