KLARK TECHNIK DN360

Input Type Electronically balanced (pin 3 hot) / Impedance (ohms) : Balanced 20k, Unbalanced 10k
Output Type Unbalanced (pin 3 hot) / Min. load impedance 600 (ohms) / Source impedance <60 (ohms) / Max. level +22dBu
Frequency response (20Hz-20kHz)
Eq out +/- 0.5dB
Eq in (flat) +/- 0.5dB
Distortion (THD+N) < 0.01% @ 1 kHz,+4 dBu
Equivalent input noise (20Hz-20kHz unweighted) Eq in (flat) <-90dBu
Channel Seperation >75dB @ 1KHz
Overload indicator +19dBu
Gain -infinity to +6dB
Filters Type MELT / Centre frequencies 2x30, to ISO266:1997 25Hz to 20kHz 1/3 octave / Tolerance +/- 5%
Maximum boost/cut +/- 6/12dB / Subsonic filter 18dB/octave - 3dB @ 30Hz

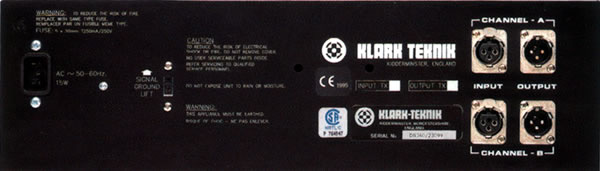

Terminations Input 3 pin XLR / Output 3 pin XLR / Power IEC
Power Requirements Voltage 220/240V 50/60Hz / Consumption <15VA
Dimensions Width 482mm / Depth 205mm / Height 133mm
Weight 5.8kg
