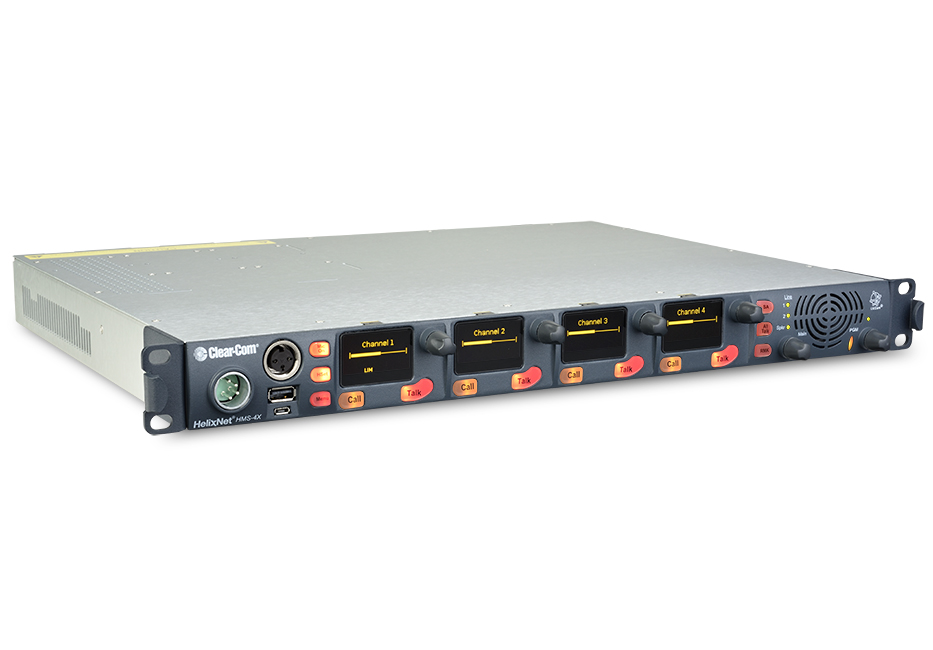

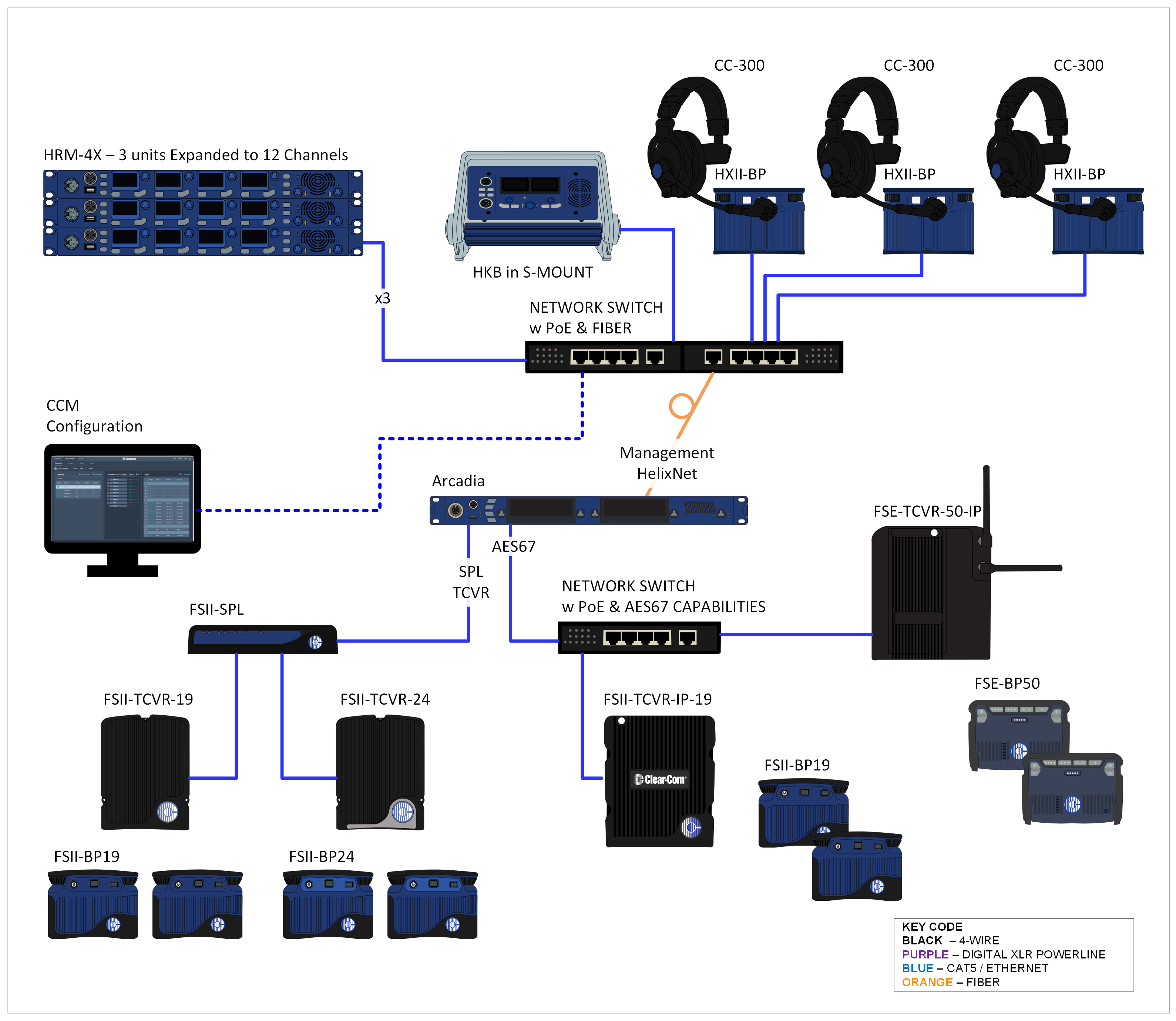

The HMS-4X is a 1RU digital partyline main station that provides power and up to 12 networked channels of audio. A single Main Station can support up to 20 digital beltpacks on a single shielded twisted-pair cable.
HMS-4X Main Station Highlights
High Channel Density. Four independent intercom channels and power for beltpacks transmitted over shielded twisted-pair (Ex. microphone cable, CAT5, or CAT6 cable).
No Rewiring Required. System designed to preserve investment by operating on shielded existing infrastructure.
Single Cable Operation. Fewer cables save time and cost during setup and configuration.
No Hum. No Buzz. All-digital system offers immunity to electro-magnetic interference and ground loops.
High User Capacity. Connect up to 20 beltpacks on a single HMS-4X Main Station across four channels.
Quick Startup. Get up-and-running fast and effortlessly with easy plug-and-go installation and hardware auto-discovery.
Seamless Interfacing. Optional two-wire and four-wire modules interface with existing analog intercom systems and audio devices.
Easy-to-Navigate Menu. Quick access to system settings and configuration for fast and painless set up.
Easy Updates. Apply firmware maintenance and upgrades easily via USB ports.
Features
Front Panel
Remote Microphone Kill
Stage Announce Out
Line Status Indication
Large Format OLED Displays
Up to 10 Characters for User-defined Labels
Talk and Call Keys
Speaker and Program Level Controls
Rotary Channel Level Controls
USB-A and USB Micro-AB Ports
XLR Headset Connector
Microphone and Headset On/Off Key
Back Panel
Universal Power Connector
GPIO- DB-25 (4 Relays & 4 Opto Inputs)
Hot Microphone Output
Stage Announce (SA) Out
Program Input
XLR-3M and XLR-3F Powerline Intercom Ports

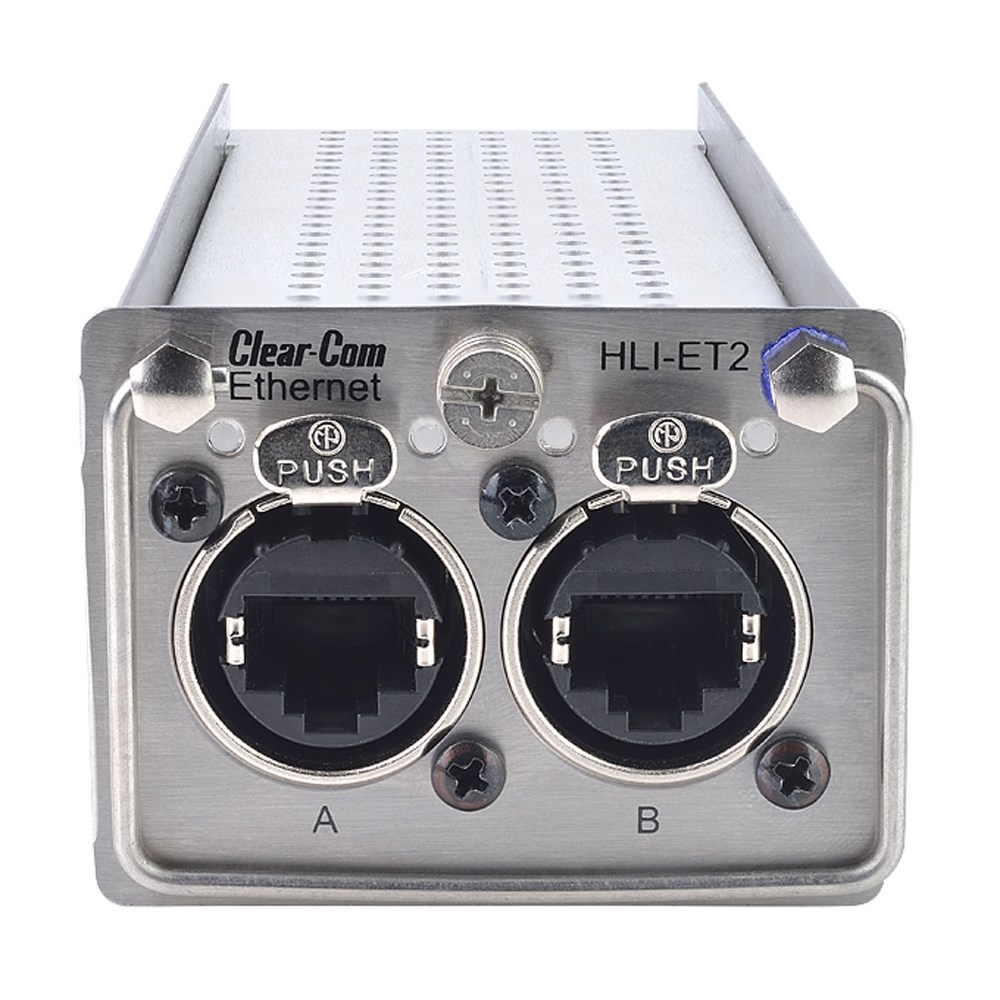

Ethernet Module
Built-in Expansion Bays for Optional Interface Modules
Technical Specifications
dBu is an absolute measurement. 0 dBu is referenced to 0.775 volts RMS.
Channels
Four intercom channels
Program Audio (Assignable to intercom channels)
Connectors
?Intercom Line: (2) 3-pin XLRM-F loop thru
Headset: 4-pin XLR–M
USB: Type A & Micro AB
Program: 3-pin XLR–F
SA (Stage Announce): 3-pin XLR–M
Hot Mic / IFB Interface: 1/4" (0.64 cm) phone jack
GPI: 25 way D-type female
Microphone Pre-amplifier
Headset Mic Impedance: 200Ω (Dynamic)
Headset Mic Voltage: 1.7V (Electret selectable)
Limiter: +23dB
The following specified for a route to four-wire output at 0dBu out:
Mic Gain: 60dB (Dynamic), 45dB (Electret)
Frequency Response: 300Hz – 10 kHz ±3dB
Contoured for Intelligibility
Distortion: <0.2% THD @ 1kHz
Noise:
Headphone Amplifier
?Load Impedance: >32Ω
Output Level: +12dBu before clipping
Sidetone: -12dBu (selectable)
The following specified for a route from a four-wire input at 0dBu in:
Max Gain: 0dB
Frequency Response: 40Hz - 10kHz ±3dB
Distortion: <0.1% THD @ 1kHz
Noise: <-65dBu
Headphone Limiter: 0dBu (selectable)
Loudspeaker Amplifier
Load Impedance: 8Ω
Output Level: +18dBu before clipping
The following specified for a route from a four-wire intput at 0dBu in:
Max Gain: 18dB
Frequency Response: 200Hz - 10kHz ±3dB
Distortion: <0.1% THD @ 1kHz
Noise: <-50dBu
Program Line Input
Maximum Level Before Clipping: 18dBu
Nominal Input Level: 0dBu (selectable)
Input Impedance: >= 10KΩ
The following specified for a route to four-wire output at 0dBu out:
Frequency Response: 20Hz - 10kHz ±3dB
Distortion: <0.2% THD @ 1kHz
Noise: <-65dBu
Stage Announcer Output
Maximum Level Before Clipping: 18dBu
Nominal Output Level: 0dBu (selectable)
Output Impedance: <= 100Ω
The following specified for a route from a dynamic headset:
Frequency Response: 300Hz - 12kHz ±3dB
Distortion: <0.1% THD @ 1kHz
Noise: <-55dBu
Hot Mic Output
Maximum Level Before Clipping: 12dBu
Nominal Output Level: 0dBu (selectable)
Output Impedance: <= 100Ω
The following specified for a route from a dynamic headset:
Frequency Response: 300Hz - 12kHz ±3dB
Distortion: <0.2% THD @ 1kHz
Noise: <-55dBu
Main Power
Input Voltage Range: 100 - 240VAC
Input Frequency Range: 50 - 60Hz
Input Power: <= 250VAC
Output Voltage: +/-29VDC ± 1V
Output Current per Channel: 1.5A (continuous)
Power Connector: IEC60320-1-C14
Environmental
Max temperature is 40ºC (104ºF)
0 - 90% relative humidity

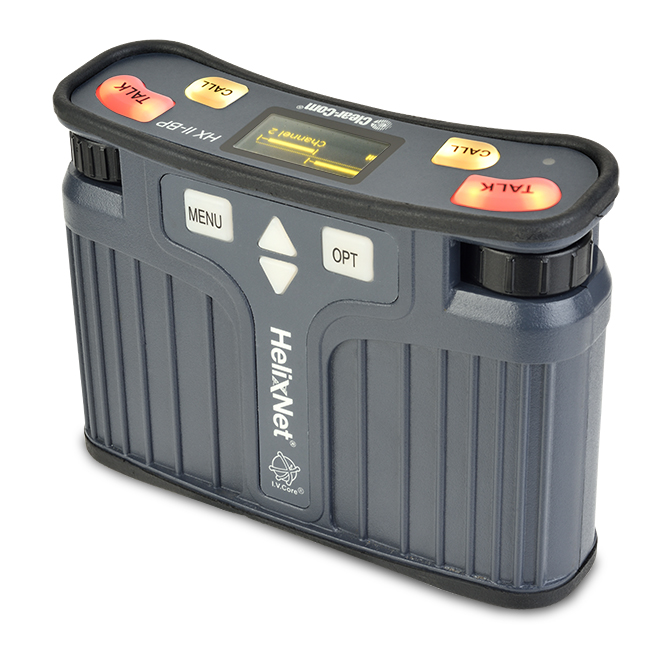

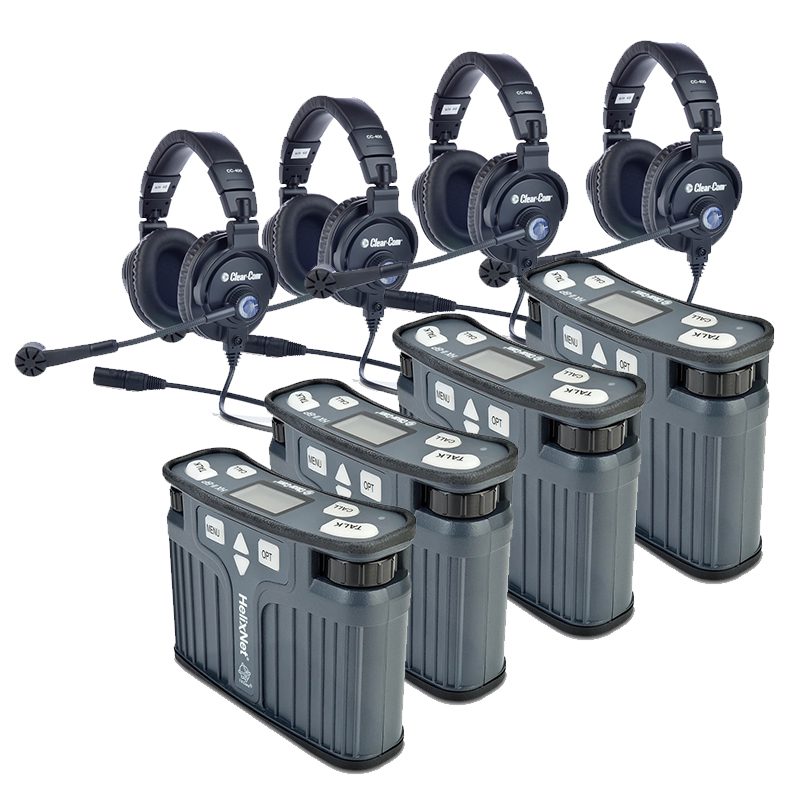

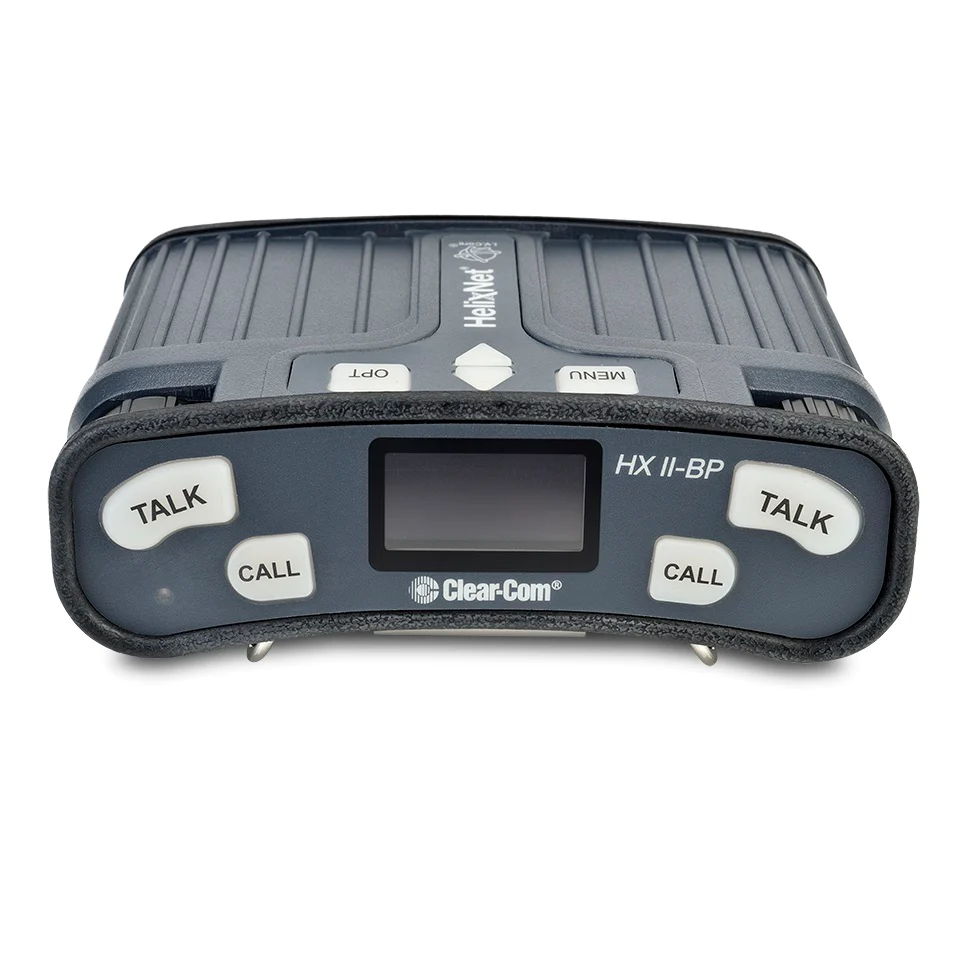

The HBP-2X is a rugged and ergonomically designed 2-channel digital partyline beltpack. A beltpack can have access to two of any four system channels over a single shielded twisted-pair cable.
HBP-2X Beltpack Highlights
Channel Density. Similar to a source assignment panel, a single cable gives every connected beltpack the capacity to access all four system channels.
Selectable Channels. The full-duplex, 2-channel beltpack can select up to two of the available four system channels and access program audio, each with individual level control.
Save Resources. Networked audio is distributed over a single, shielded twisted pair, reducing the number of cables to yield time and cost savings.
Passively Interconnection. Beltpacks can be set up in daisy-chain or star configurations with no need for active split boxes.
Clear-Com Sound: Legendary contoured audio frequency response provides maximum intelligibility and exceptional sound quality.
Efficient Administration. System configuration and firmware upgrades are centrally managed from the main station.
Intuitive Operations. Present logical channel labels on the high-contrast, 10-character OLED display.
Effortless Navigation. Optimally positioned buttons and volume knobs are easy to locate, identify and control on the beltpack.
Highly Durable. Fabricated from lightweight cast aluminum, the beltpack is able to endure the rigors of intensive applications.
High-resolution, Large Format OLED Display (Up to 10 Characters for Unique Labels)
Visual and Vibrating Call Alerts
Ridge Guide for Tactile Navigation and Mechanical Protection
XLR-4M Headset Jack (5-Pin Option)
2.5 mm TRS Headset Jack
XLR-3F Intercom Line
XLR-3M Intercom Pass-through (Daisy-chain)
Technical Specifications
Channels
Two intercom channels (Selectable)
Program Audio (Assignable from Main Station)
Connectors
?Intercom Line: (1) 3-pin XLRM–F loop thru
Headset: 4-pin XLR–M & 2.5mm TRS jack
USB: Micro AB
Microphone Pre-Amplifier
Headset Mic Impedance: 200Ω (Dynamic)
Headset Mic Voltage 1.7V (Electret selectable)
Limiter: +23dB
The following specified for a route to four-wire output at 0dBu out:
Mic Gain: 60dB (Dynamic), 45dB (Electret)
Frequency Response: 300Hz – 10 kHz ±3dB
Contoured for Intelligibility
Distortion: <0.2% THD @ 1kHz
Noise:
Headphone Amplifier
Load Impedance: >32Ω
Output Level: +12dBu before clipping
Sidetone: -12dBu (selectable)
The following specified for a route from a four-wire input at 0dBu in:
Max Gain: 0dB
Frequency Response: 40Hz - 10kHz ±3dB
Distortion: <0.1% THD @ 1kHz
Noise: -65dBu
Headphone Limiter: 0dBu (selectable)
Power Requirements
4W
DC Voltage Range: 30-60 volts
Environmental
?Max temperature is 45ºC (113ºF)
0 - 90% relative humidity
The HKB-2X is a 4-channel, two display with shift page, flush mount digital partyline headset and Speaker Station that connects to Helixnet Main or Remote Stations over a single shielded twisted-pair cable. The HKB-2X can be locally powered via an external power supply or third party Power-over-Ethernet (PoE) power source.
HKB-2X Speaker Station Features
For use with HelixNet Main and Remote Stations
4-channel, two display, digital networked partyline station
Fits 4-gang standard electrical wall box (US ANSI/NEMA OS-1) or optional S-Mount enclosure
Displays swivel up and down for best viewing
Individual Partyline and Program Audio speaker levels with speaker mute
Powered by Powerline, Power-over-Ethernet (PoE) or AC/DC universal power adapter
Technical Specifications
Channels
Four intercom channels
Any networked program audio feeds (Assignable to intercom channels)
Connectors
Headset: 4-pin XLR–M
Gooseneck Mic: 3-pin Tuchel
As Surface Mount Station:
Intercom line: Screw terminal block (3-way)
DC Power: Screw terminal (2)
Ethernet/PoE: RJ-45
In S-Mount Desktop:
Intercom line: (1) 3-pin XLR-M, (1) 3-pin XLR-F
DC Power: 3-pin to AC adapter (provided)
Ethernet/PoE: RJ-45
Microphone Pre-amplifier
Headset Mic Impedance: 200Ω (Dynamic)
Headset Mic Voltage: 1.7V (Electret selectable)
Limiter: +23dB
The following specified for a route to four-wire output at 0dBu out:
Mic Gain: 60dB (Dynamic), 45dB (Electret)
Frequency Response: 300Hz – 10 kHz ±3dB Contoured for Intelligibility
Distortion: <0.2% THD @ 1kHz
Noise:
Headphone Amplifier
Load Impedance: >32Ω
Output Level: +12dBu before clipping
Sidetone: -12dBu (selectable)
Max Power: 5W
The following specified for a route from a four-wire input at 0dBu in:
Max Gain: 0dB
LS Frequency Response: 180Hz – 11kHz +3dB
Distortion: <0.1% THD @ 1kHz
Noise: <-50dBu
Main Power
Via AC Adapter:
Input Voltage Range: 100 - 240VAC
Input Frequency Range: 50 - 60Hz
Input Power: <= 250VAC
AC Adapter Power
Connector: IEC60320-1-C14
Via Power over third party supplied Ethernet power source (PoE):
