| Mains rating | 100 V - 240 V ( ±10%), 50-60 Hz |
| Connector | Lockable IEC connector C13 |
| Power consumption | 10 W - 20 W max when powering another LS10 |
| Backup power circuit | 24 V DC redundant power input 24 V DC redundant power output |

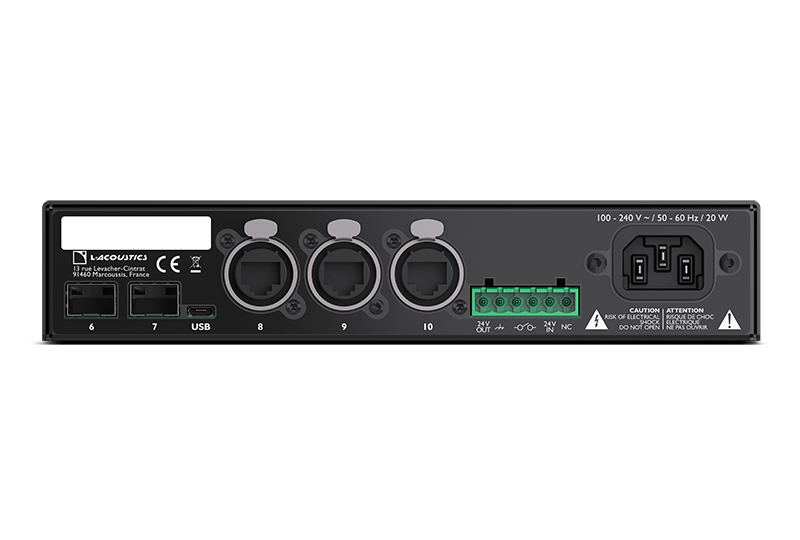

| Ethernet ports | 10 AVB ports at 1 Gb/s: - 8 x Neutrik etherCONTM I/O (5 in the front, 3 in the back) - 2 × SFP cages (rear) |
| Featured AVB entities | Avnu-certified AVB bridge |
| Standards | IEEE 802.1BA-2011 standard augmented by Avnu ProAV 1.1 requirements |
| Number of supported AVB streams | 150 |
| Startup time | Ready to forward AVB streams in 5 seconds |
| Management | GPTP grandmaster capable, priority selection RSTP: enable/disable |
| Port sensing | Auto negotiation |
| Auto crossover | MDI / MDIX (allows to use straight or cross cables) |
| Autosensing | Full or Half Duplex (Gigabit is always Full Duplex Mode) |
| Indicators | 1 LED for power status, 1 LED for fault status 10 LEDs for link/act status |
| Button | Reset to factory settings |
| L-Acoustics remote control software | LA Network Manager |
| General purpose inputs and outputs (GPIO) | 1 user-configurator GPO |
| Temperature | -5º C / 23º F to +50º C / 122º F |
| Height | 1U |
| Weight | 1.5 kg / 2.2 lb |
| Protection rating | IP30 |
Dimensions
