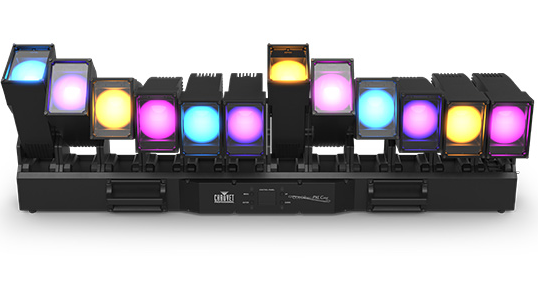

Chauvet COLORado PXL Curve 12

Specifications

Optical

  • Light Source: 12LEDs (RGBW) 45 W, (2.96 A) 50,000 hours life expectancy
  • Color Temperature (range): 2700 to 8000 K
  • Beam Angle Spot: 5.7°
  • Beam Angle Flood: 26.8°
  • Beam Angle 50% Zoom: 13.8°
  • Field Angle Spot: 9°
  • Field Angle Flood: 33.9°
  • Field Angle 50% Zoom: 19.2°
  • Cutoff Angle Spot: 9.9°
  • Cutoff Angle Flood: 36.3°
  • Cutoff Angle 50% Zoom: 21.6°
  • Zoom Range: 5.7° to 36.3°
  • Lumens: 5,807 lm
  • Illuminance (Spot) : 38,727 lux @ 5 m
  • Illuminance (Flood) : 1,120 lux @ 5 m
  • Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz


Dynamic Effects

  • Tilt: 200°
  • Tilt Range: 60°, 180°, 200°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes


Construction / Physical

  • Dimensions: 39.21 x 7.09 x 12.80 in (996 x 180 x 325 mm)
  • Weight: 76 lb (34.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast, High-Impact flame-retardant polymer, Steel

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powercon IP65
  • Power Input: Seetronic Powercon IP65
  • Power Output: Seetronic Powercon IP65
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
  • Cable Length (power): 5 ft (1.5 m)


Control

  • Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
  • DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch
  • Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)


Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
  • Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz
  • Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz
  • Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz
  • Fuse: F12 A, 250 V


Certifications / Qualifications

  • CE, MET, UKCA, FCC
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
