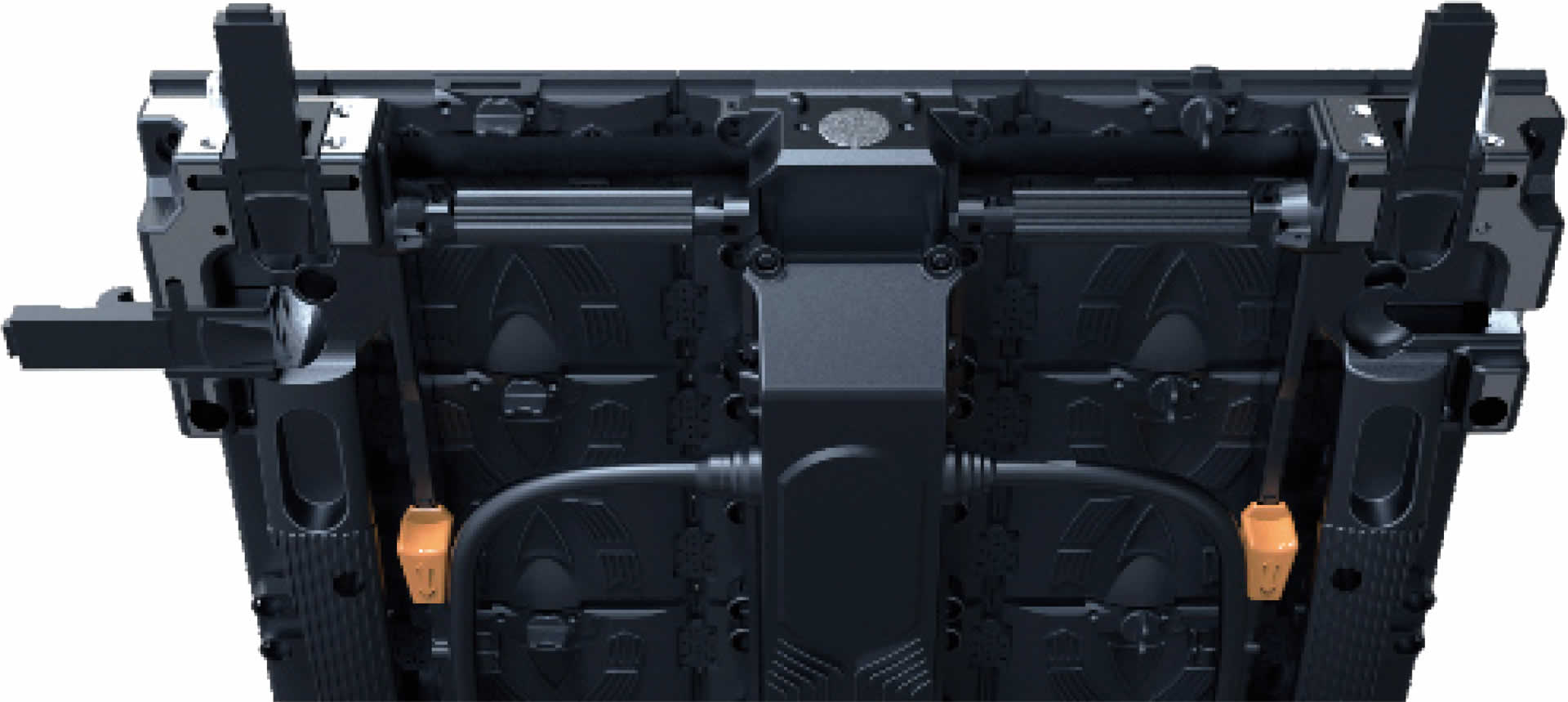

Infiled X3.9 Edge

Perfect Wave Screen Solution

Applications :
  • stage performance
  • public square
  • shopping mall
  • stadium
  • hotel…
Key Features :
  • Faster and easier to build
  • Separate control unit
  • Allow for perfect smooth curves
  • Flat panel and corner panel optional
Part Number
  • Pixel Pitch : 3.9mm
  • Physical Density : 65,536pixels/m2
  • LED Arrangement : 2020 Black LED
  • Module Resolution : 128×32pixels
  • Module Dimension : 500×125mm
  • Cabinet Resolution : 128×128pixels
  • Brightness Level : 1,200~1,700nits
  • Max Power Consumption : 200W/panel
  • Ave Power Consumption : 66.7W/panel
  • Viewing Angle : 140°/140°
  • Operating Power Source : AC90-260V 50-60Hz
  • Operating Temperature : -10~+45°C
  • Refresh Rate : 1,000~2,400Hz (configurable)
  • Curvable Rate : 5 Levels(+20° ,+10°, 0°,-10°,-20°)
  • Life Span : 100,000 Hours?
  • MTBF : 5,000 Hours
  • Protecting Rating : IP30
  • Signal Input Source : Composite, S-Video, Component, VGA, DVI, HDMI, SDI, HD SDI

Galerie photos

02
00
infiled_x3_cotes

Propriétés techniques


  • Consommation électrique: 200 W
  • Dimensions en flight-case (X12): … x … x … cm
  • Dimensions unitaires: 500 x 500 x 84 mm
  • Poids en flight-case (x12): … kg
  • Poids unitaire: 8,9 kg

Fichiers associés


Autres matériel de la marque Infiled

Infiled X3.9 Curve

Dalle LED, pitch 3,9 mm, modèle "curved" angle 0°, 10°, 20°, 128x128 px
