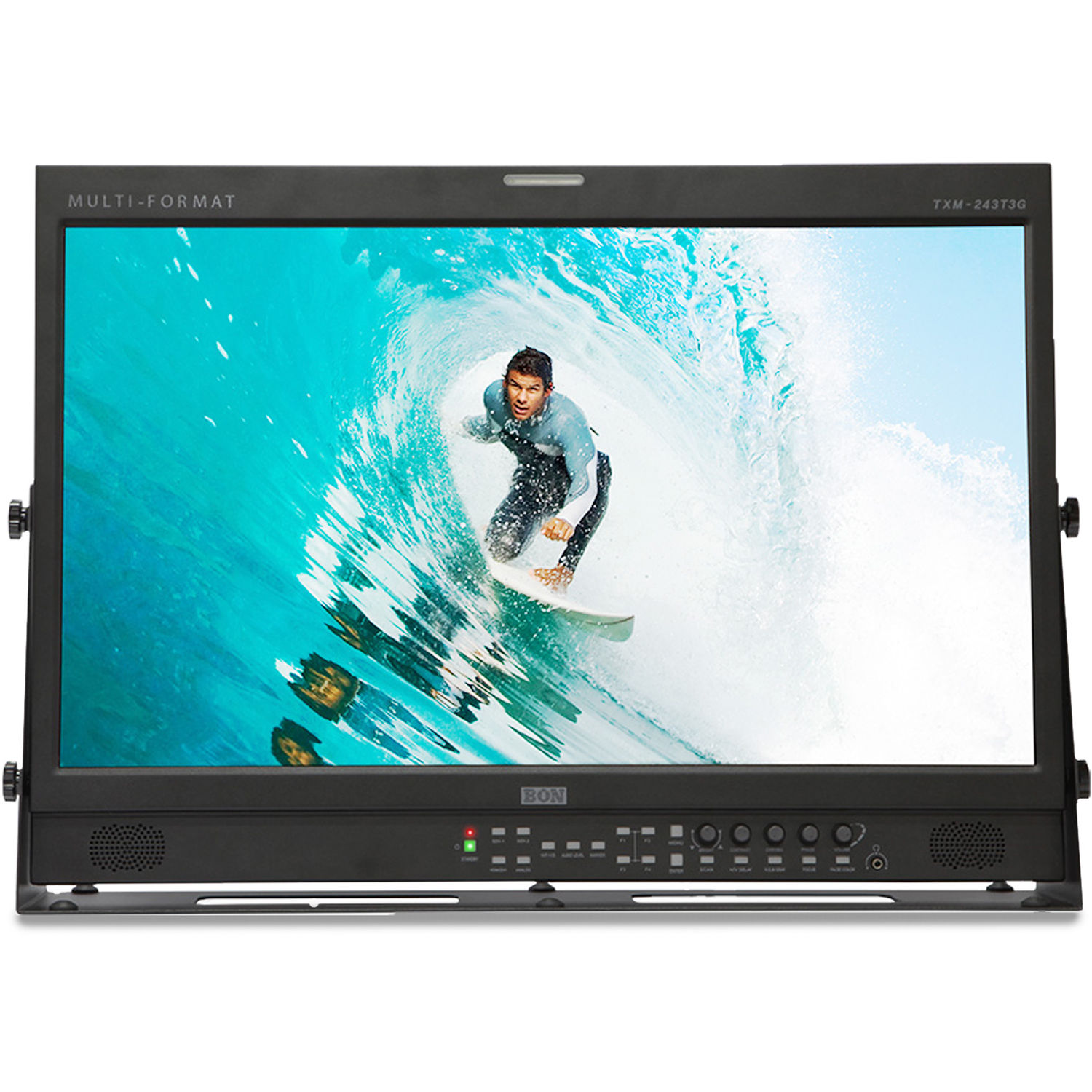

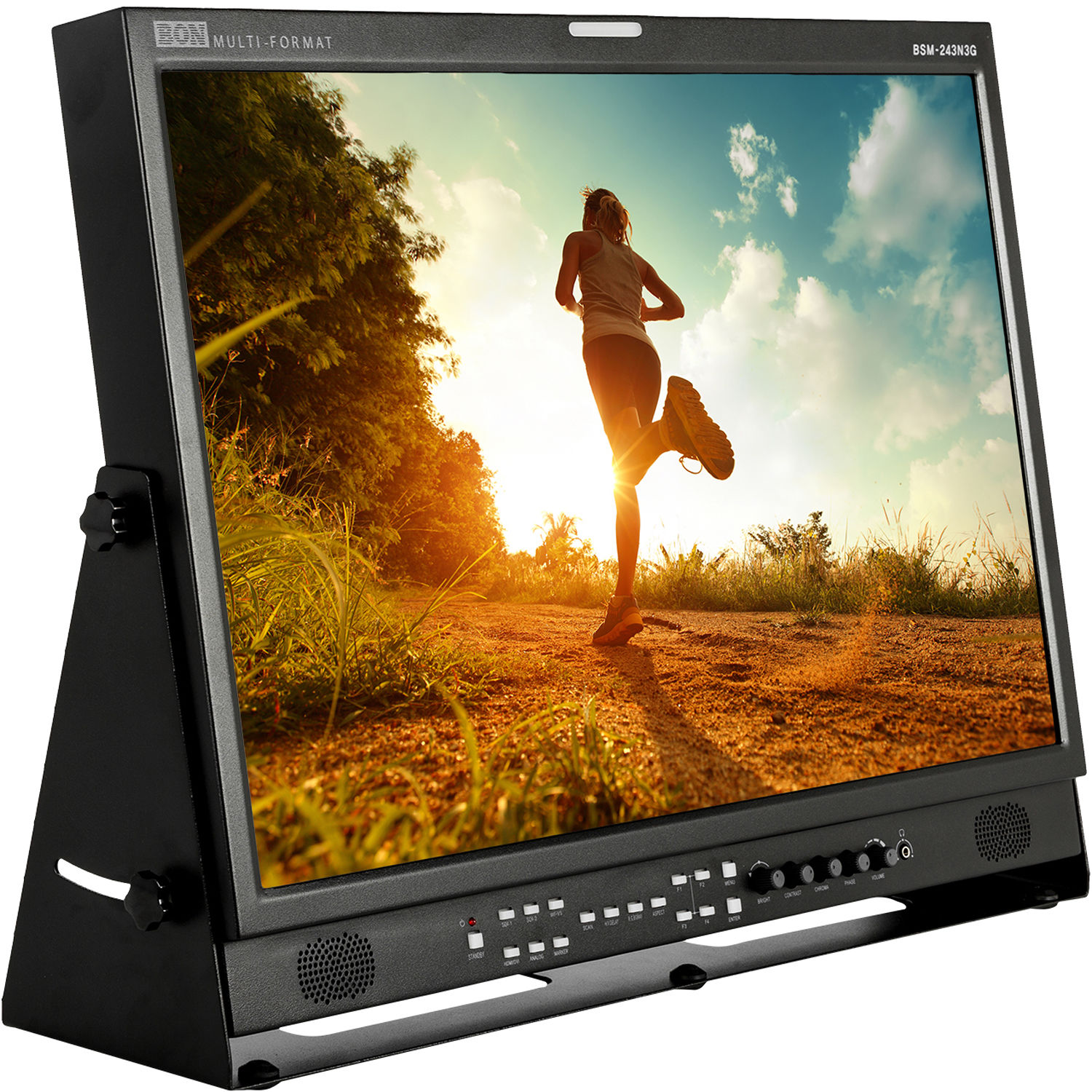

BON Moniteur broadcast 18.5"
Model BSM 183-n-3G - Moniteur 18.5" pour visualisation caméra et étalonnage
| LCD |
|---|
| Size: 24" |
| Resolution: 1920 x 1200 |
| Pixel Pitch: 0.270mm |
| Color: 8 bit |
| Viewing Angle: 178(H), 178(V) (IPS) |
| Luminance of White: 350 cd/m² |
| Contrast: 1000 : 1 |
| Back Light: LED |
| Display Area (H x V): 518.4 x 324.0 mm |

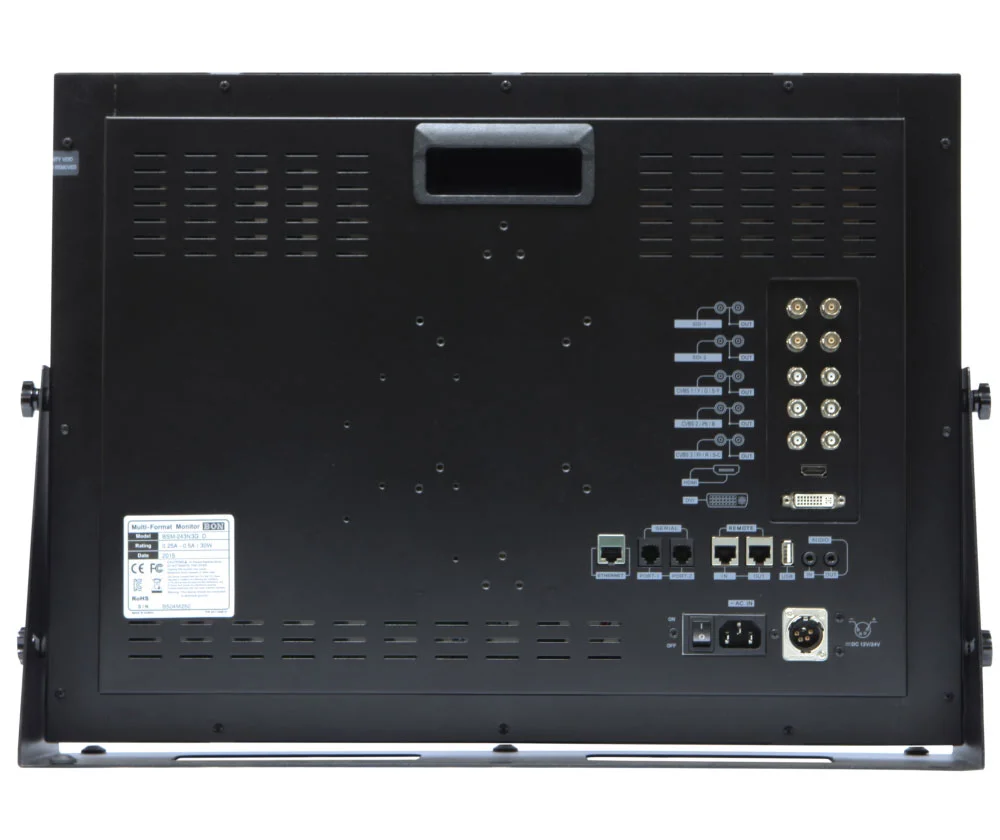

| Input |
| 2 x BNC: HD/SD-SDI, 3G/1.485G/270M |
| 3 x BNC: Analog(YPbPr/CVBS/S-Video/RGB) |
| 1 x HDMI: HDMI (with HDCP v.1.1), 19pin Female |
| 1 x DVI: DVI-I, 24pin, Female |
| 1 x VGA: DVI-I to VGA Jack (with gender) |
| Output |
| 2 x BNC: SDI-1/2 Active Loop Output |
| 3 x BNC: Analog(YPbPr/CVBS/S-Video/RGB) |
| Analog Input Level |
| Composite: 1.0Vp-p(with sync), NTSC/PAL |
| YC(S-Video): Y :1.0Vp-p, C:0.286Vp-p |
| Component(Y/Pb/Pr): Y :1.0Vp-p, Pb :0.7Vp-p, Pr :0.7Vp-p |
| Component (R/G/B): G :1.0Vp-p(with Sync), B :0.7Vp-p, R :0.7Vp-p |
| PC-RGB,Sync Level: R, G, B : 0.7Vp-p, H/V Sync : 4V ± 1Vp-p |
| Input Signal Format |
| SMPTE 425M AB: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) 1080i (60/59.94/50) |
| 2K, SMPTE 428M: 2048*1080,24p/psf,23.98p/psf |
| SMPTE 274M/292M: 1920*1080i (60, 59.94, 50) 1920*1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF) |
| SMPTE 296M: 1280*720p/60,59.94,50 |
| SMPTE 260M: 1920*1035i/60,59.94 |
| SMPTE 125M/259M: 720*480i/60,59.94, 720*576i/50 |
| ITU R-BT.656: 576i(50) |
| Composite: 720*480i(NTSC)/576i(PAL) |
| Component, VGA: 480i/p ~ 1920 * 1080i/p |
| DVI Signal: 480i/p ~ 1920 * 1080i/p |
| HDMI Digital: ~ 1920 * 1200i/p(de-embedded Audio 2ch) |
| Audio Input/Output |
| 1 x Phone Jack In: Line In(Stereo) |
| 2 x Phone Jack Out: Line Out(Rear,Stereo), Headphone Out(Front, Stereo) |
| 2 x Speaker Out: 2W+2W, Stereo |
